Raymarine Cam220 Day And Night Ip Eyeball Camera

Raymarine Cam220 Day And Night Ip Eyeball Camera

$502.99
$502.99
Sale Sold out
FREE SHIPPING TO THE LOWER 48 STATES

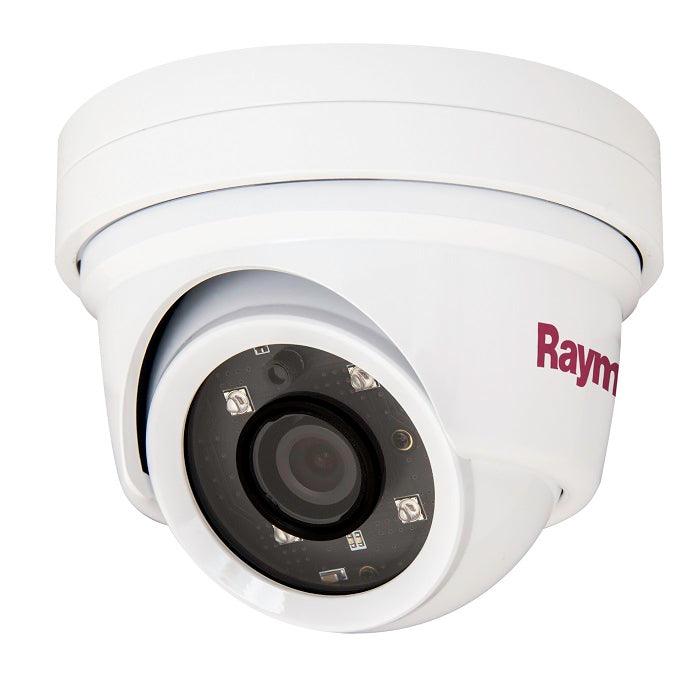

Raymarine CAM220 IP Marine Day and Night Network Eyeball Camera

Model: E70347
UPC: 723193813270
  • Plug and play integration with Raymarine MFDs running Lighthouse II
  • Power over Ethernet (PoE) or direct 12v DC power supply
  • Simple mechanical frame allows the camera to be locked, rock steady, into position
  • High bright IR LEDs for operation in total darkness

Ruggedised, High Definition, Day and Night network eyeball video camera suitable for above or below deck applications. Eyeball design provides all round selected viability whilst the small frame size allows for rapid installation. Stylised to blend in with your boat’s aesthetic design.Ruggedised, High Definition, Day and Night network eyeball video camera suitable for above or below deck applications.

Eyeball design provides all round selected viability whilst the small frame size allows for rapid installation. Stylised to blend in with your boat’s aesthetic design.

Specifications
System
CPU 32-bit ARM9 RISC CPU up to 432MHz
Flash/SDRAM 128MB/128MB
Camera
Image sensor 2.0 Megapixel 1/2.8"" SONY progressive scan CMOS(Exmor)
Total pixels 1952(H) x 1116(V) 2.18 Megapixel
Effective Pixels 1944(H) x 1104(V) 2.15 Megapixel
S?N Ratio More than 50dB
Minimum Illumination 0Lux (IR On)
IR Distance 20M (4 Built-in High Power LED’s)
Day & Night ICR
Lens 3.6mm Wide angle Megapixel Board Lens
Field of View Horizontal = 51.0 deg +/- 3 deg Vertical = 93.0 deg +/- 3 deg
Video
Video Compression H.264 High Profile@4.0, MJPEG —Image quality: 3 Steps
Resolution Up to 1920 x 1080 (Full HD)
Frame rate H.264 Up to 30fps with 1920x1080 , MJPEG Up to 30fps with VGA resolution
Video Streaming Support multi stream with H.264, MJPEG, Adjustable frame rate, CVBR/CBR in H.264
Image settings Day & Night
Auto White Balance
Shutter Speed (1/4~1/2,000)
DSS
BLC
Brightness, Contrast, Sharpness, Mirror
System integration
Security Password protection, User access log, HTTPS encryption
Supported protocol HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelegent video Motion detection up to 1920x1080 with 12x12 blocks
Physical
Power source DC12V/1.5A, PoE(Power over Ethernet): 802.3af
Power consumption Max. 5.4W with IR
LED's Power, Network Connection
Dimensions 178mm(D) x 66 ( )

What's in the Box:
  • CAM220
  • Waterproof Coupler
  • CAM220 Hardware Kit
  • CAM220 Mounting Template
  • CD (English)
  • Warranty Booklet
