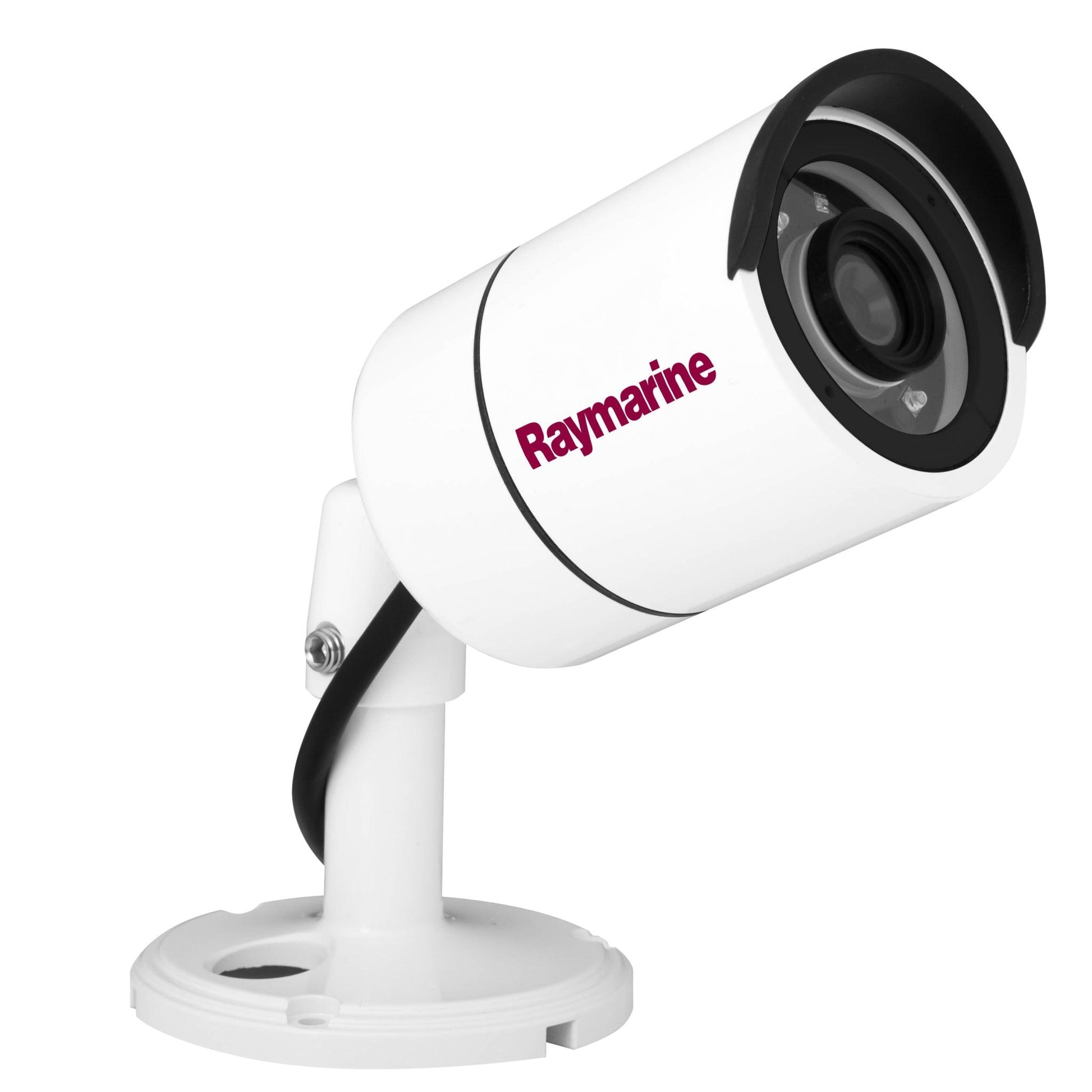

Raymarine CAM210 Day and Night IP Bullet Camera
Model: E70346UPC: 723193813263
- Plug and play integration with Raymarine MFD’s running Lighthouse II
- Power over Ethernet (PoE) or direct 12v DC power supply
- High bright IR LEDs for operation in total darkness
- Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
- Intelligent IR technology for clear video images at night in all conditions
Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.
SpecificationsSystem | |
CPU | 32-bit ARM9 RISC CPU up to 432MHz |
Flash/SDRAM | 128MB / 128MB |
Camera | |
Image sensor | 2.0 Megapixel 1/2.8"" SONY progressive scan CMOS(Exmor) |
Total pixels | 1952(H) x 1116(V) 2.18 Megapixel |
Effective pixels | 1944(H) x 1104(V) 2.15 Megapixel |
S/N Ratio | More than 50dB |
Minimum illumination | 0Lux (IR On) |
IR Distance | 20 meters |
Day 7 Night | ICR |
Lens | 6.0mm Megapixel Board Lens |
Field of view | Diagonal = 63.6 deg +/- 3 deg Horizontal = 53.3 deg +/- 3 deg Vertical = 33.1 deg +/- 3 deg |
Video | |
Video compression | H.264 High Profile@4.0, MJPEG —Image quality: 3 Steps |
Recolution | Up to 1920 x 1080 (Full HD) |
Frame rate | H.264 Up to 30fps with 1920x1080 , MJPEG Up to 30fps with VGA resolution |
Video streaming | Support multi stream with H.264, MJPEG Adjustable frame rate CVBR/CBR in H.264 |
Pan/Tilt/Zoom | Digital Pan, Tilt and Zoom |
Image Setting | Day & Night Auto White Balance Auto Exposure Privacy Mask Effects - Colour, Sharpness, Mirror / V-Flip |
System integration | |
Security | Password protection, User access log, HTTPS encryption |
Supported protocol | HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP |
Intelligent video | Motion detection up to 1920x1080 with 4x3 blocks |
Physical | |
Power source | DC12V/1.5A, PoE(Power over Ethernet): 802.3af |
Power consumption | Max. 3.3W, Max. 5.3W with IR |
LED's | Power, Network Connection |
Dimensions | 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket |
What's in the Box:
- CAM210 IP Camera Stand
- Waterproof Coupler
- CAM210 Hardware Kit
- CD (English)
- CAM210 Mounting Template
- Warranty Booklet
