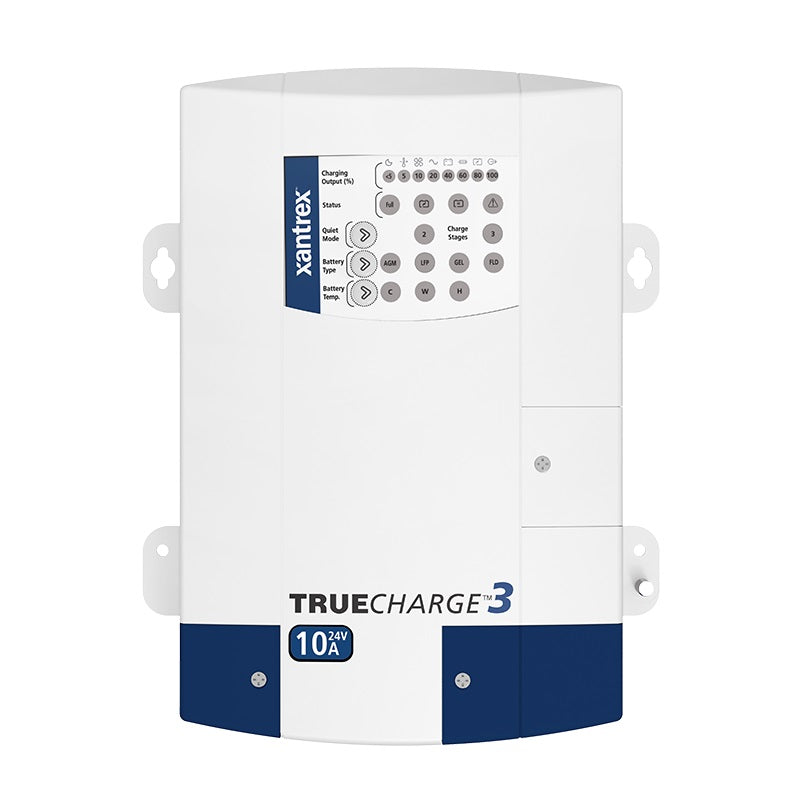

Xantrex Truecharge3 10 Amp Single Bank 24v Charger
Model: 804-2410-10- Lithium-ion battery compatible
- Automatic 3-stage battery charger
- Parallel stack up to 2 chargers
- Circuit breaker protection
TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient, power factor corrected multistage charging. Thanks to their inherent drip-proof design characteristics, these chargers can be mounted in multiple positions. Unlike it’s predecessors, TRUEcharge3 is Lithium-ion battery compatible.
Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90—265 Vac, 47—63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line
Specifications| Output current (nominal) | 10 A |
| Charge | 28.4 — 31.0 Vdc |
| Float | 26.8 — 27.6 Vdc |
| Equalize | 32 Vdc |
| DC output connections | Three |
| AC input voltage | 90-265; Vac 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal |
| Temperature compensation | Three settings |
| Charger efficiency | Greater Than 80 percent |
| Battery type | Gel, Flooded, AGM, Lithium-Ion |
| Minimum recommended battery bank size | 20 Ah |
| Operating temperature | 0—60 degrees C (32—140 degrees F) |
| Weight | 4.8 lb (2.2 kg) |
| Warranty | Two year |
| Dimensions | 2.8 x 6.7 x 9.8in (70 x 170 x 250 mm) |
