Xantrex

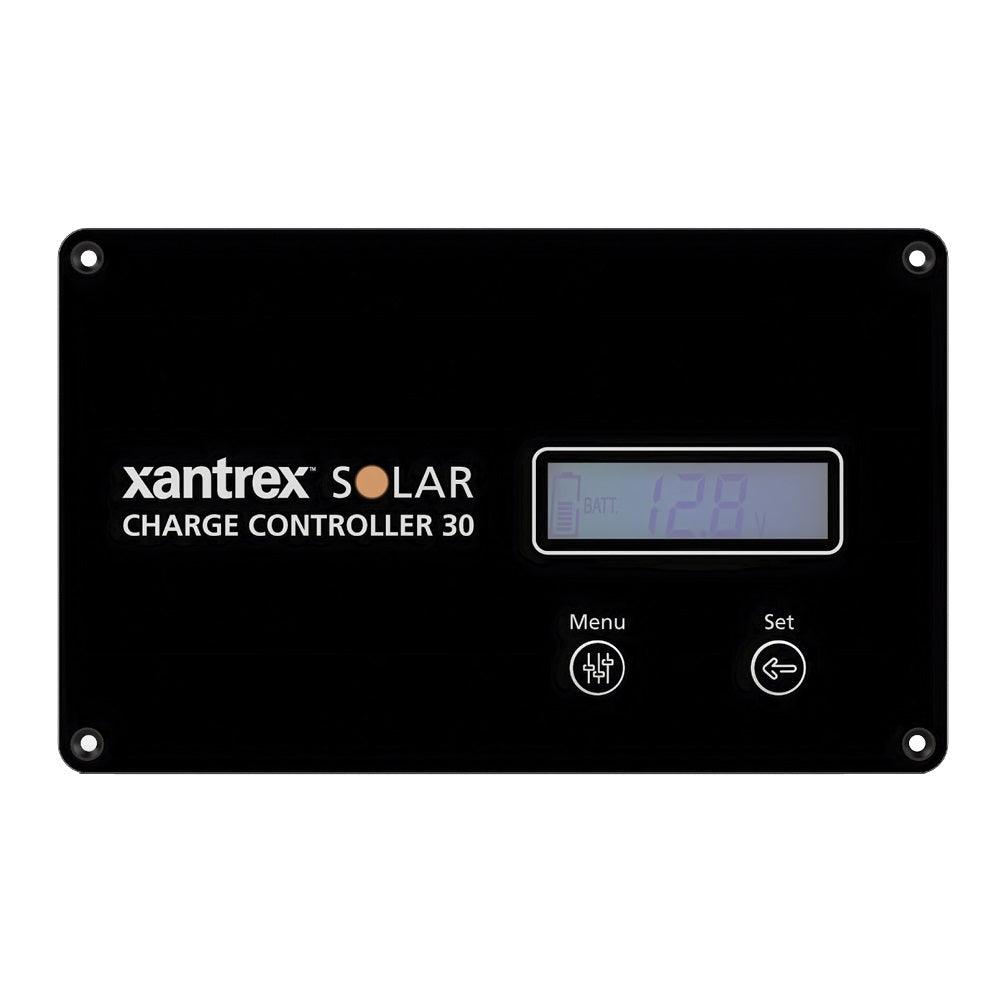

Xantrex Solar Pwm 30a Charge Controller

Xantrex Solar Pwm 30a Charge Controller

Regular price $139.99
Regular price Sale price $139.99
Sale Sold out

Xantrex PWM Charge Controller

Model: 709-3024-01
  • Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
  • Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
  • Best-in-class PV array and battery protections
  • Aesthetic flush-mount industrial design

Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.

The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor.

Specifications
Nominal System Voltag 12/24V Auto-Detect
Battery Input Voltage Range 8V to 32V
Rated Charge Current 30A
Max. PV Short Circuit Current 30A
Max. PV Open Circuit Voltage 50A
Battery Types Supported Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO )
elf-consumption 12V: 4.2mA
24V: 2.6mA
Temperature Compensation Coefficient -3mV/°C/2V
Grounding Common negative
ENVIRONMENTAL DATA
Storage Temperature Range -30°C to 80°C
Operating Temperature Range -20°C to 55°C (fully rated output)
MECHANICAL DATA
Dimensions 7.03"" W x 4.31"" H x 1.86"" D (178.5mm W x 109.4mm H x 47.3mm D)
Max. Cable Size (PV Array and Battery 0.63in (16mm ) / 6AWG
Recommended Cable Size 0.24in (6mm2) / 10AWG or larger
