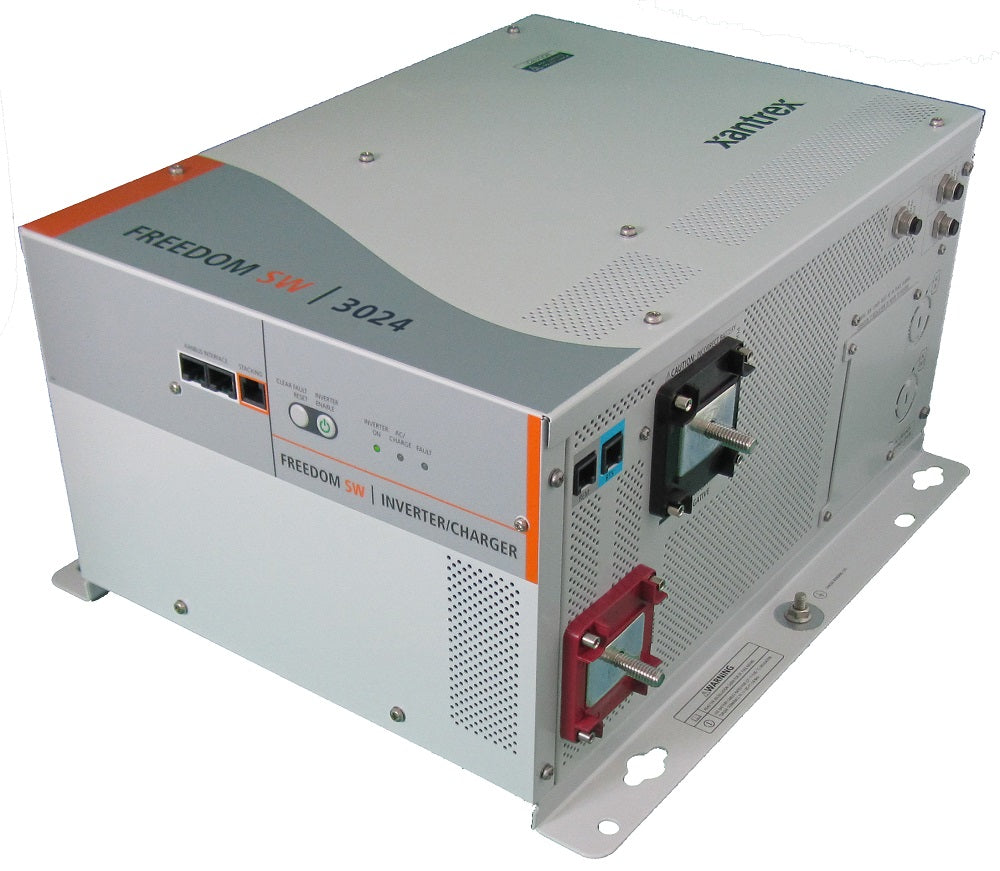

Xantrex Freedom SW3024 24v Inverter Charger B-Stock

Xantrex Freedom SW3024 24v Inverter Charger B-Stock

Xantrex SW3024 24v 3000W Inverter Charger Scratch and Dent Unit

• Pure sine wave output in two 24-volt


• Parallel stacking capability to double the inverter power output


• Series stacking capability enables operation of 240 Vac applications


• Advanced configuration options for customized applications*


• Built-in transfer switch automatically transfers between inverter power and incoming AC power


• Power factor corrected, multi-stage charger for fast, efficient charging


• Temperature compensated charging for a vareity of climate conditions


• Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power**


• Wide operating temperature range


• Conformal coated circuit boards for humid environments


• Dual input / Dual output AC interface (3000W model)


• Compatible with the Xantrex Automatic Generator Start*** (Part# 809-0915)


• Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements

The NEW Freedom SW 24 Vdc inverter/charger is packed with features and it is one of the most advanced inverter/chargers in the market today. The Freedom SW features premium sine wave output with high surge capability and temperature compensated, power factor corrected, multi-stage charging to meet power needs of demanding loads including inductive motor loads.

The Freedom SW inverter/charger provides utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.

The Freedom SW offers SERIES and PARALLEL stacking capability to enable twice-the-rated output and operation of 240 Vac applications respectively. Both models are compatible with optional accessories such as the System Control Panel and the Automatic Generator Start.

*A System Control Panel is required for all system configuration and setup **When used with the remote panel ***Sold separately

Output power (continuous at 40°C)
3000 W

Surge rating (5 seconds)
6000 W

Peak output current
75 A

Output frequency
60 Hz +/- 0.2 Hz

Output voltage
120 Vac

Output wave form
Pure sine wave

Optimal efficiency
94%

No-load power draw (inverting)
< 1.5 Adc

Input DC voltage range
20 - 32 Vdc

AC connections
Split phase in / dual out

Electrical specifications charger

Output current (continuous at 25°C)
75 A

Output voltage
24 Vdc

Output voltage range
12 - 32 Vdc

Charge Control
3 stage with manual equalize

Charge temperature compensation
Remote battery sensor (included)

Efficiency
> 85%

AC input power factor (maximum charge)
0.95 typical

Input current (for maximum charging)
22 A rms nominal

Input AC voltage
120 Vac

Input AC voltage range
85 - 140 Vac

Dead battery charge
> 12 Vdc

General Specifications

Compatible battery types
Flooded / Gel / AGM

Transfer relay rating
2 legs at 30 A each

Transfer time (AC to inverter and inverter to AC)
< 20 ms

Operating temperature range (full power)
- 4°F to 104°F (- 20°C to 40°C)

Storage ambient temperature range
- 40°F to 185°F (- 40°C to 85°C)

Unit dimensions (H x W x L)
7.75 x 13.5 x 15.25" (197 x 343 x 387 mm)

What's in the Box:

• SW3024 Scratch and Dent Unit


• Documentation


• battery Temperature sensor


• DC terminal covers (one red, one black) with two sets of #6-32 screw


• Xanbus network terminator x 2


• 5/16"-18 nuts and washers for the DC terminals x 2
