Xantrex 808-8040-10 Remote Panel F/TC3 Chargers
Model: 808-8040-10- Parallel stack chargers
- Adjust charger output
- Read battery bank statuses
- Activate quite mode
- FCC Class B

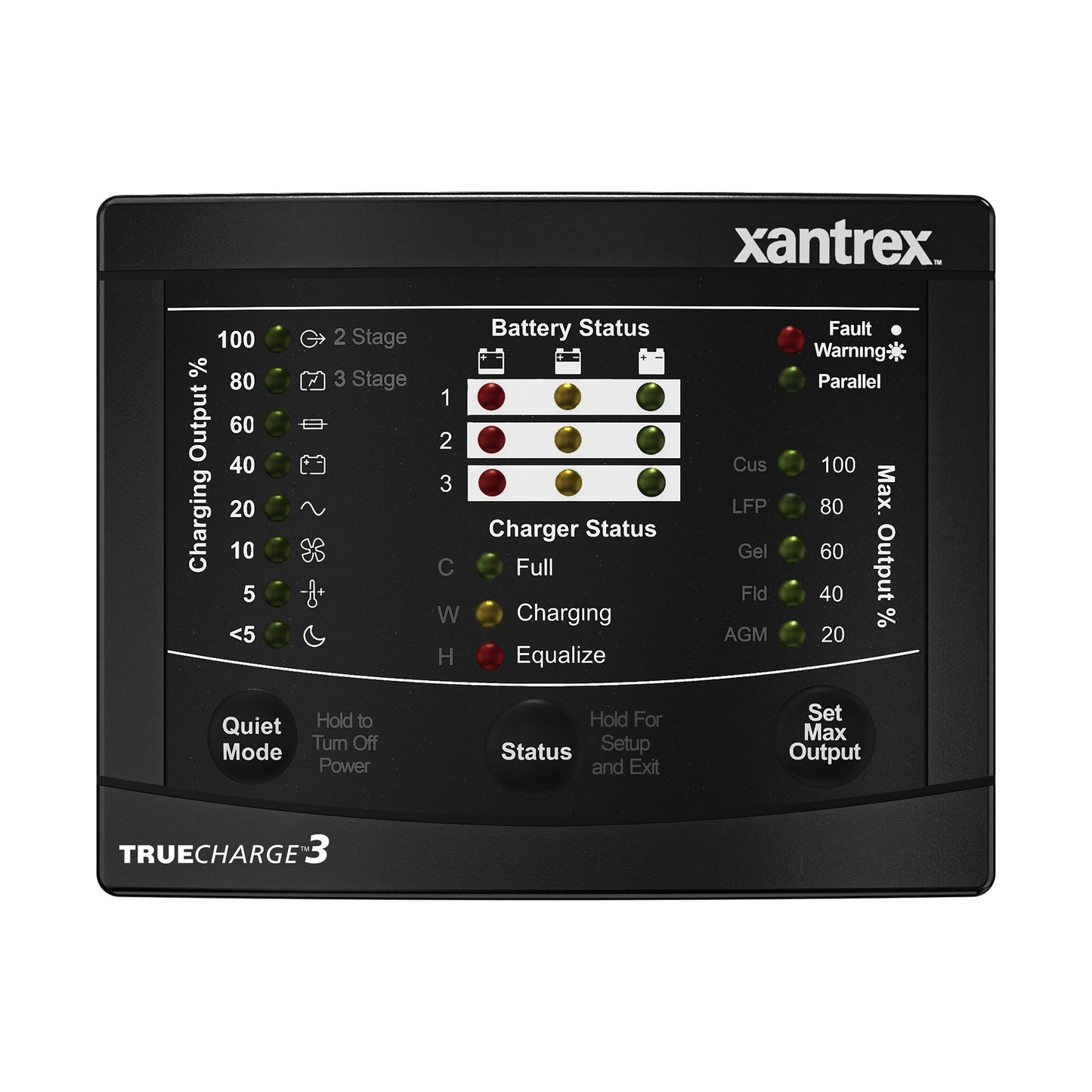

This full-function remote allows you to monitor and control battery charger performance from a remote location, including features not accessible from the charger’s onboard display. The Remote Panel reads like a fuel gauge and displays critical information on charging of battery banks. It is very easy to install, read and operate, connecting with the battery charger through the included telephone cable. The TRUECharge3 Remote Panel is designed for use with TRUECharge3 Battery Chargers.
Specifications| Electrical Specifications | |
| Display | LED |
| Off-state battery drain | < 40 mA |
| On-state power consumption | < 150 mA |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 4.56 x 1.75 x 3.5" (114.64 x 44.39 x 89.64 mm) |
| Weight | 0.44 lb (200 g) |
| Environmental Specifications | |
| Operating temperature range | 32—140°F (0—60°C) |
| Storage temperature range | -40—176°F (-40—80°C) |
