Wichard Marine
Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"
Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"
Regular price
$89.73
Regular price
$103.50
Sale price
$89.73
Unit price
/
per
Order and earn 450 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability

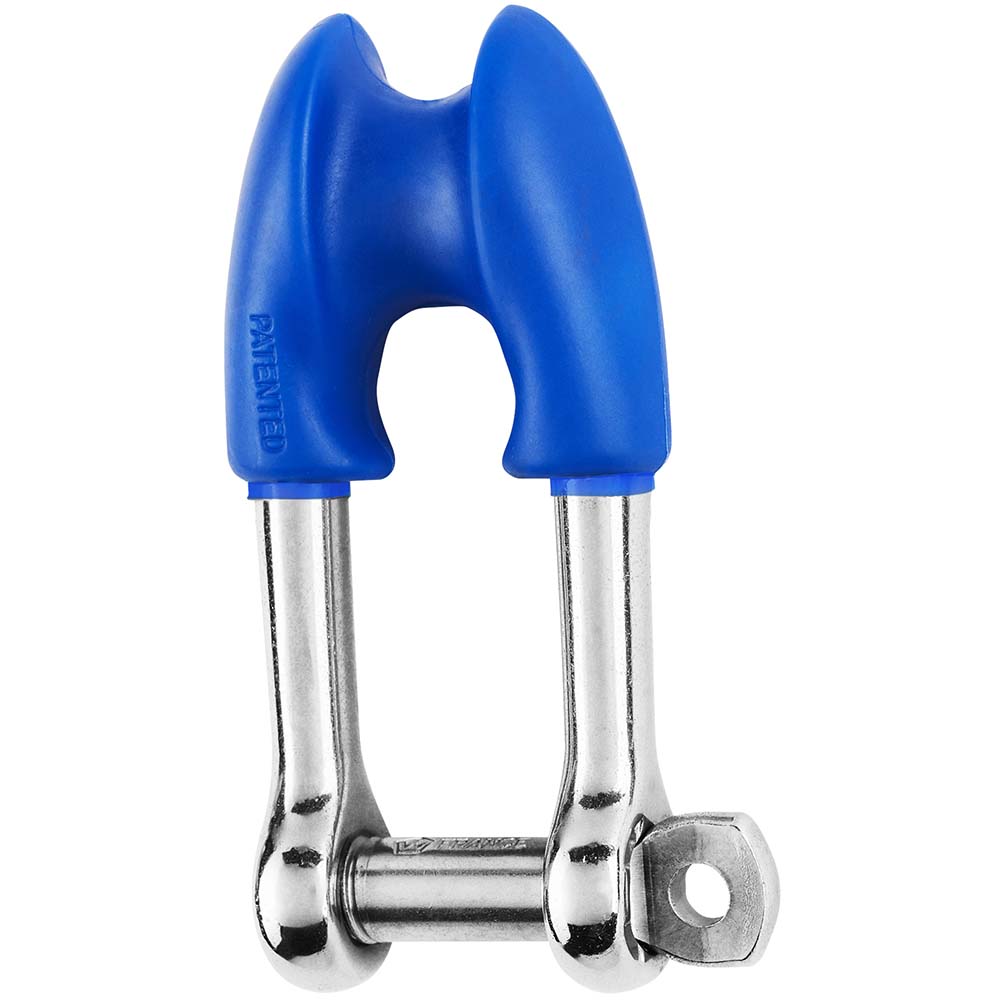

Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"
Features:
- Thimble shackle with captive pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding an additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 12mm
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- Breaking load (lb) 6610
- Weight (lb) 0.172
Dimensions (see 2nd image):
- A (inch) 1-39/64"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- F (inch) 2-63/64"
- G (inch) 1-21/32"
Manufacturer : Wichard Marine
Manufacturer Part No : 01494
UPC : 768536014945
