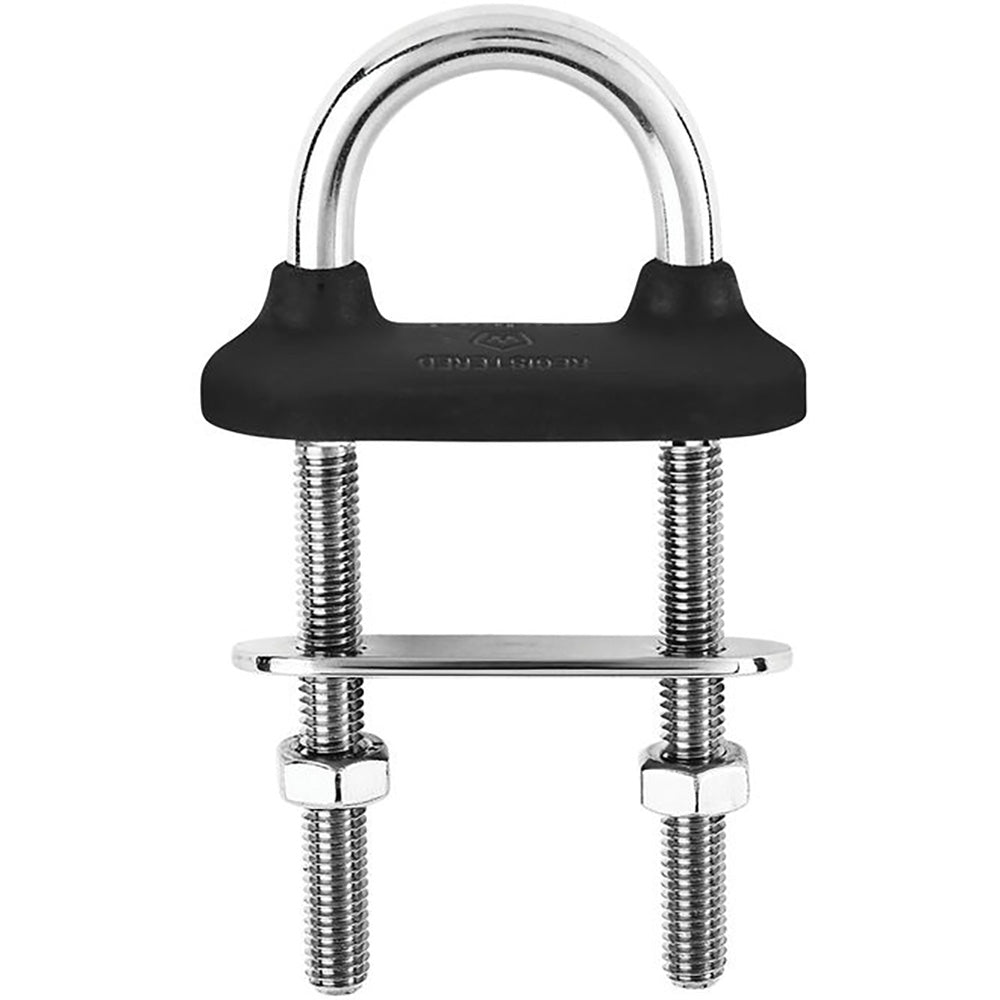

Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"

Features:

• Fully dropforged product with high quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials; 316L stainless steel grade
• Color: Black
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.761 / (g) 345

Dimensions:

• Length: (inch) 4 21/64" / (mm) 110
• A: (inch) 1 47/64" / (mm) 44
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 1 31/32" / (mm) 50
• D diameter: (inch) 15/32" / (mm) 12

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
