Si-tex

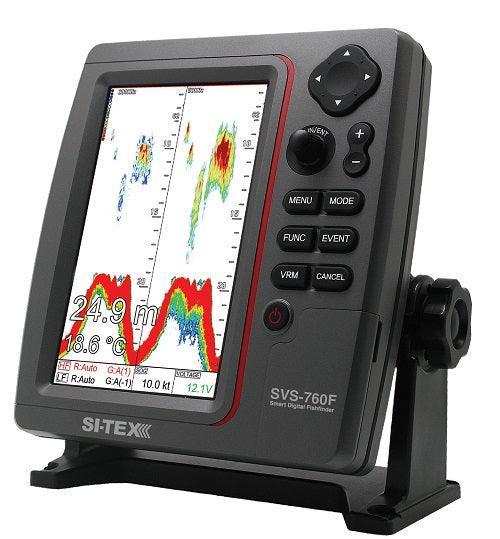

Sitex Svs-760 7" Color Lcd Fishfinder
Sitex Svs-760 7" Color Lcd Fishfinder
Regular price
$766.99
Regular price
$989.00
Sale price
$766.99
Unit price
/
per
Order and earn 3835 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
Si-tex SVS-760F 7.5"" Color FishFinder
Model: SVS--760F- 600W output/dual frequency operation
- Vertical 480X800 pixel display delivers optimum sounding data
- High-speed CPU presents all fish targets
- IPX7 Waterproof rating for flexible installation
- Professional features include Bottom Discrimination, Bottom Lock, Bottom Zoom, A-Scope
- Alarms for Depth, Fish School and Water Temperature
| Display | 7.5"" Color TFT LED Backlight (480X800 pixels) |
| Operating frequency | Dual 50/200kHz |
| Output power | 600 watts RMS |
| Operating Temperature | -15o C - +50o C |
| Display modes | Normal (single/dual frequency), Bottom-Lock, Bottom Zoom, A-Scope, Shift, VRM |
| Depth ranges | 10’ — 4,800’ |
| Image speed | 8 Image speeds (4/1, 2/1, 1/1, ½, ¼, 1/8, 1/16, 1/32) and stop |
| Interference rejection | 4 levels |
| Noise rejection | 4 levels |
| Function | Gain (auto/manual), Range (auto/manual), depth with shift (auto/ manual) pulse length selection, white/black line, water temp., bottom enhancement, 26 languages, multiple background colors, Draft Offset |
| Alarms | Depth. Sea Temp. Fish |
| Waterproof rating | IPX7 |
| Input Voltage | 12 - 36v DC |
| Input Draw | 12 watts |
| Dimensions | 8.2 x 8.4 x 2.5 |
What's in the Box:
- Display
- Bracket
- Knobs
- Power cord
- Manual
