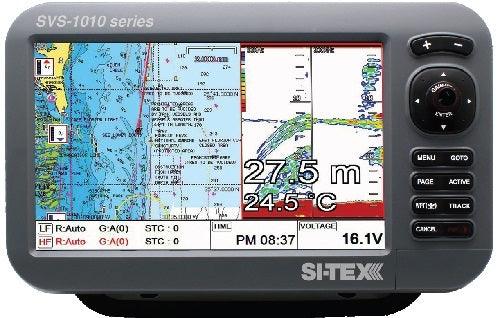

Sitex Svs-1010cf 10" Combo
Sitex Svs-1010cf 10" Combo
Regular price
$1,474.99
Regular price
Sale price
$1,474.99
Unit price
/
per
Order and earn 7375 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
SI-TEX SVS-1010CF "" Color Plotter Sonar
With Internal Antenna
Model: SVS-1010CF- 10.1"" high-resolution color LCD
- 52-channel GPS
- ""Dual fuel"" charting the C-MAP and Navionics cartography
- Pre-loaded w/Navionics Gold North American Chart Card
- Global GPS compatibility
- Brilliant LED backlighting for daylight readability
- Easy, intuitive operation and control
- Video input for underwater and on-deck cameras
| Display type | 10.1"" Color |
| Resolution | WVGA 800 x 480 |
| GPS | |
| Channels | 52 |
| Support | DGPS, SBAS(EGNOS,WAAS, MASA, GAGAN) |
| Nav update | 1Hz, 5Hz |
| Chartplotter | |
| Display modes | True motion / N/S/E/W up / Course up / Head up |
| Map scale | 0.05nm to 1500nm |
| Waypoints | 20,000 |
| Track points | 50,000 |
| Routes | 100 |
| Cartography | Standard w/Navionics Gold C-MAP MAX optional |
| Output data | NMEA-0183 |
| Input data | NMEA-0183 |
| Alarms | Arrival, Anchor, XTE, Interval timer, Userline |
| Sonar Specifications | |
| Display mode | Normal (single/dual-frequency), Bottom-lock. Bottom-zoom, A-scope |
| frequency | 50 and 200 KHz (single or dual) |
| Output power | 600W |
| Input Voltage | 12-36vdc |
| Input Draw | 7W |
