Si-tex

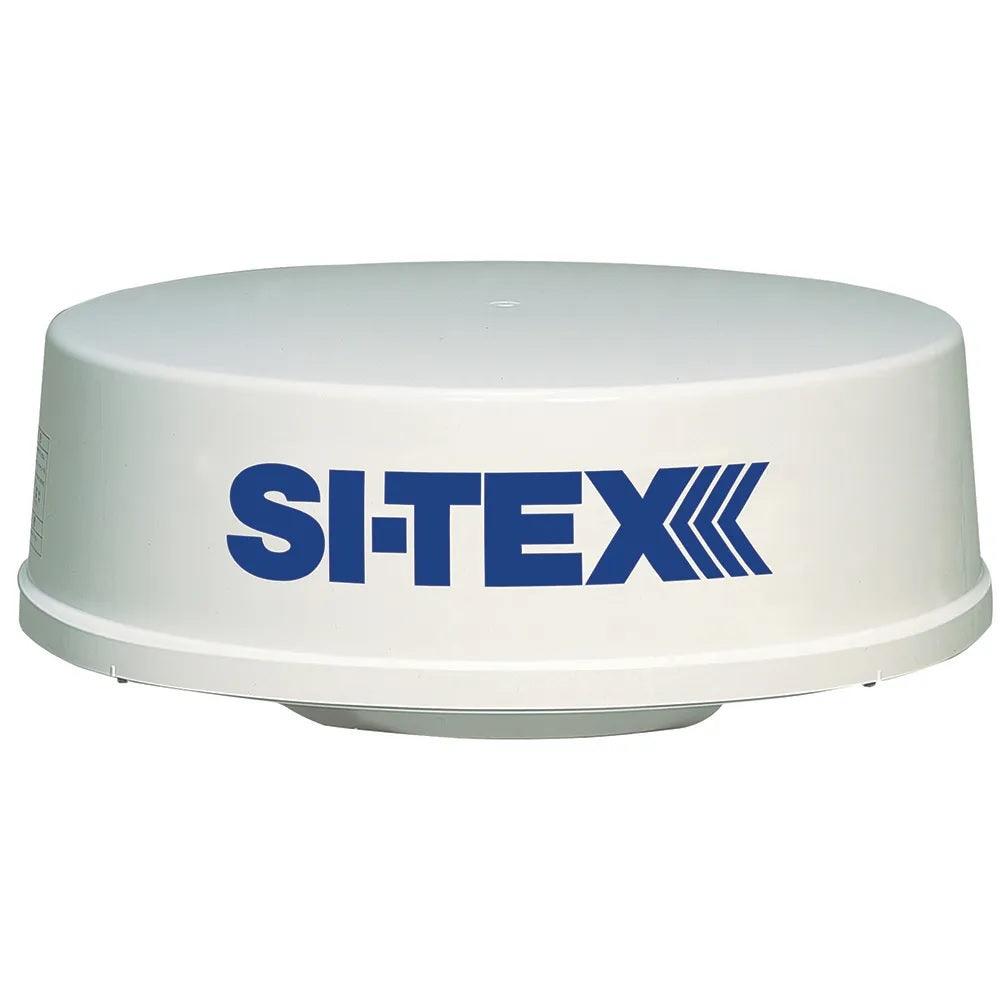

Sitex Mds-12 24" 4kw Dome Wifi Radar Dome
Sitex Mds-12 24" 4kw Dome Wifi Radar Dome
Regular price
$1,649.99
Regular price
Sale price
$1,649.99
Unit price
/
per
Order and earn 8250 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
Si-tex MDS12 WiFi 24"" 4kW Radar Radome
Model: MDS-12 WIFIWI-FI integration with the advanced NavPro Series makes it easy to install and rig this 4kW, 24-inch compact radome radar on just about any vessel. By mounting and wirelessly syncing the SI-TEX MDS-12 Network Radome to a NavPro unit, boaters can turn these popular and affordable MFDs into powerful 36-nm range radars that deliver excellent target resolution and a range of features boaters expect from professional-grade SI-TEX radars
Specifications| Type | 55cm Hybrid array |
| Maximum range | 36 miles |
| Diameter | 24 inch |
| Rotationspeed | 24rpm |
| Wind load | Relative wind 100 knots |
| Beam width | Horizontal4° Verticle 25° |
| Frequency | 9410 +/- 30MHz(XC-band) |
| Peak power output | 4kW nominal |
| Noise figre | 10dB nominal |
| Supply voltage | 10.5vDC - 40vDC 60 watts, 30 watts in economy mode |
| Cable length | 15 meters |
