Sitex Mda5 Class B Ais With Wifi

Sitex Mda5 Class B Ais With Wifi

Regular price $976.99
Regular price Sale price $976.99
Sale Sold out

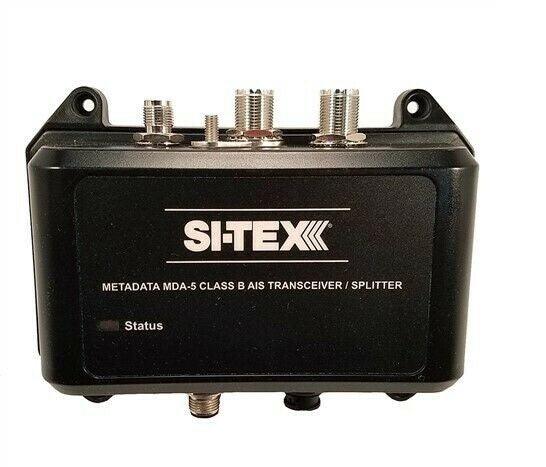

Sitex MDA-5 Class B/So AIS Transceiver

Model: MDA-5
  • The MDA-5 is the world’s most sophisticated fully certified 5-Watt SOTDMA Class B AIS Module on the market
  • 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
  • SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don’t have network priority.
  • Integrated zero loss VHF antenna splitter — no second antenna needed
  • Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
  • NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
  • Built-In GPS & GLONASS satellite navigation receiver
  • Water Proof certified to IPX7
  • Dual Receivers decodes all DSC & AIS messages, including MOB & SART
  • Ultra-power efficient
  • IEC-62287-2, FCC and USCG certified
  • 2 Year Warranty
Transmitter Output Power 5 Watts
VHF Antenna Connector SO-239 UHF
GPS Antenna Connector TNC
Frequency Range 156.025 - 162.025 Mhz
Input Voltage 9.6-31.2 Vdc
Current Draw 220mA Average Power Consumption
Operating Temperature Range -25°C - +55°C
Ingress Protection IP67
Dimensions - Transceiver 6.8"" W x 5.0"" H x 2.0"" D

What's in the Box:
  • MDA-5 Transceiver
  • Commercial Grade External GPS Antenna with Coax Cable
  • Mounting hardware
  • Power & Data Interface cable
  • VHF Radio Connection cable
  • Product information DVD, with ProAIS2 Software for Programming & Troubleshooting
  • User Manual
  • Quick Start Guide
