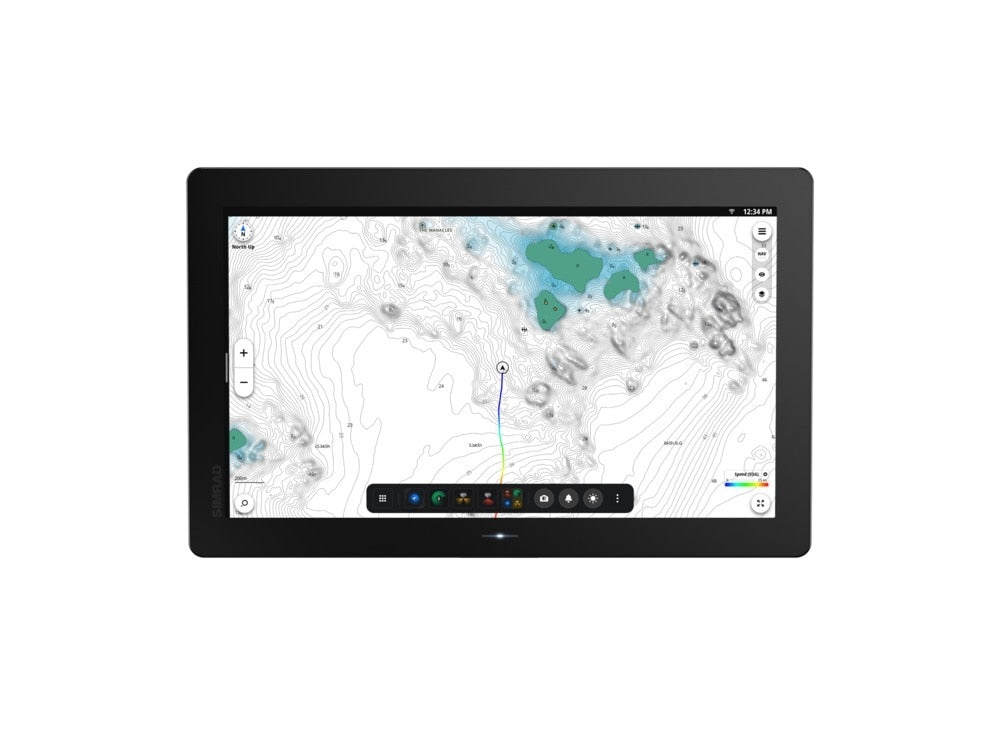

Simrad NSO 4-22. NEON OS, 22-inch Glass-bridge multi-function display

Simrad NSO 4-22. NEON OS, 22-inch Glass-bridge multi-function display. Qualcomm 8-core processor. Full HD touchscreen. Gigabit Ethernet, WIFI, Video In and Out. Next-generation C-MAP DISCOVER X chart included

Model: 000-16560-001

• Premium glass-to-edge design


• Lightning fast 8-core processor


• Latest NEON operating system


• Support for Active Imaging & Active Imaging HD (requires S3100H)


• Includes C-MAP DISCOVER X Chart


• Support for C-MAP X-gen charts and others


• Simrad RECON, Rhodan and Motorguide Trolling Motor Compatible


• Compatible with Simrad suite: S3100 & S5100 sonar modules, HALO radar, and more


• Support for Mercury, CZone, SiriusXM, and more


• Our brightest ever full HD touchscreen


• New rear-mount installation system


• New 4-way camera split

A new 22" expands our NSO line-up, allowing you to tailor your chartplotter choice to your dashboard for a truly premium look.

Built for the worlds most commanding vessels, NSO 4 puts a premium on design. Gently curved edges bring an instantly premium feel to the dash. A truly glass-to-edge design keeps things clean and seamless for years to come. And a new power light gives instant visibility over your chartplotters status.

When paired with sonar modules, NSO 4 supports use of multiple transducers, unlocking unbeatable underwater views. Make the most of the additional screen real estate with the ability to track multiple depths and angles around your vessel.

Our biggest, brightest display is the perfect match for C-MAPs latest charts. NSO 4 supports DISCOVER X and REVEAL X, bringing vivid, clutter-free presentations and instant, lag-free performance.

The X-Chart Manager also lets you update charts directly on the device via internet connection. The ability to select custom areas is ideal for those who frequently explore new waters.

Compatibility with others like StrikeLines and CMOR Mapping provide complete flexibility. NSO 4 even lets you run multiple charts simultaneously for the ultimate navigation experience.

An expanded hard drive lets you store more waypoints, routes, and tracks than ever.

Nobody connects better with Mercury than we do. Direct integration with Mercury SmartCraft Connect gives you full visibility and control over your engines and fuel.

Integration with the SiriusXM WM-4 Satellite Receiver brings live weather updates, radar, music, and fish mapping, to know where fish are biting.

Simrad is the worlds only chartplotter brand to offer full integration with FishCast powered by ROFFS. Dial into world-class angling forecasts directly on your display.

Designed to be a complete command center, NSO 4 integrates with everything from audio to lighting.

Specifications

Manouevres / Turn Patterns
U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth

Steering Modes
Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Connectivity

Ethernet
4 ports (X-Coded M12 GbE)

NMEA 0183
No. Use a converter such as 000-15939-001 NMEA 0183 - NMEA 2000 converter

NMEA 2000
1 x NMEA 2000 Micro-C port, 1 LEN

PC Connectivity
No

Video
Video In port (up to 1920 x 1080P), Video out port (up to 1920 x 1080P). Video limited distribution to other NSO 4 units via Ethernet. Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras

WiFi
WIFI 5, 5.0 and 2.4GHz Compatible

Display

Backlight Color
White

Resolution
1920 x 1080 px

Screen Brightness
1200 nits

Size and Type
22" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses

Viewing Angles
80 top / bottom, 80 left / right. (typical values at contrast ratio = 10)

Electrical

Power Consumption, max.
52 W

Recommended Fuse Rating
5 A

Supply Voltage
12/24 V DC (10 - 31.2 V DC min - max)

Environment

Operating Temperature Range
-15C to 55C (5F to 131F)

Storage Temperature Range
-20C to 60C (-4F to 140F)

Waterproof rating
IPX6 and IPX7

MFD

AIS
Receive AIS data over NMEA 2000

Autopilot
NAC-1, NAC-2, NAC3, NAC-D

Cartography included
Discover X chart card of North America

Cartography supported
C-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StikeLines (check with provider for available content)

External Storage
2x microSD, Class 10 or higher. Up to 256GB, 1 x USB port. Formats: FAT 32, EXT4, ExFAT or NTFS

GPS
External GPS antenna required

Internal Storage
128 GB, > 64 GB User Data

Multimedia
Via Video In port

Radar (inc. compatibility)
Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars

Sonar (inc. compatibility)
Network Sonar modules S3100, S5100. Transducers connected to NSS 4, NSX over Ethernet

Weather
Sirius XM via WM4 module, FishCast powered by ROFFS (USA only)

Waypoints, Routes, Tracks
10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network

Compass Safe Distance - Metric, imperial
65 cm (2.13 ft) No Suncover

Other
2 Years

Interface Warranty Period
Full touchscreen, Optional keypad (OP55 wired controller)
