Simrad

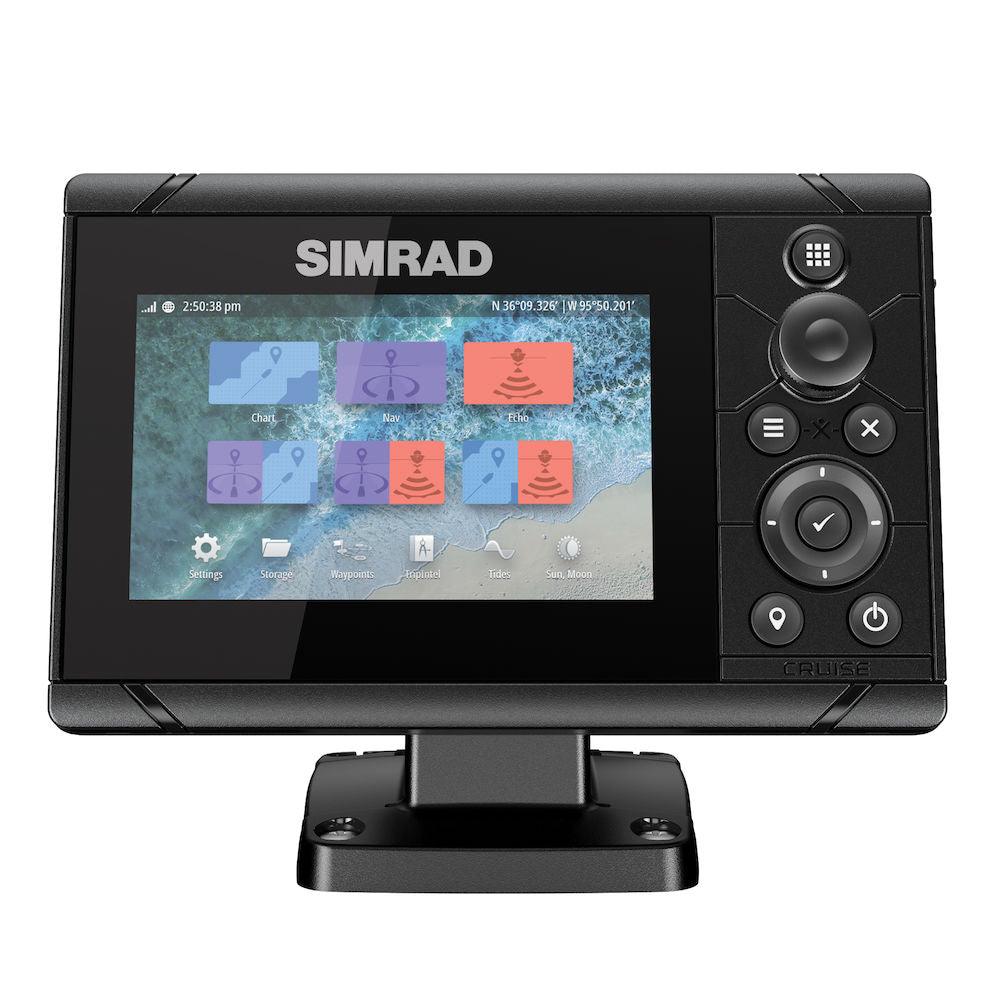

Simrad Cruise-5 Combo With Us Coastal Charts And 83/200khz Transom Mount
Simrad Cruise-5 Combo With Us Coastal Charts And 83/200khz Transom Mount
Couldn't load pickup availability
ON SALE THROUGH 12/31/24
Simrad CRUISE 5 US COASTAL, 83/200 XDCR
Model: 000-14995-001
- Cruise confidently with simple menus plus easy-to-use rotary dial and keypad controls
- Always know where you are and where you are going with pre-loaded US Coastal map or worldwide basemap, plus C-MAP® and Navionics® upgrade options
- Keep important data in view with pre-seleced split screens
- Monitor depth readings, position, battery voltage and other critical boat information
- CHIRP sonar
The new Simrad Cruise is the most intuitive chartplotter available. Taking ease of use to a new level, Simrad Cruise is a chartplotter first and depth finder second — offering reliable GPS navigation at an affordable price. Free from complicated fishing-specific sonar and networking features, with Simrad Cruise you won’t need to master complex electronics -- simply turn on your display and go.
Pre-loaded with U.S. coastal charts and a worldwide basemap, the sunlight viewable display comes with a mounting bracket and transducer. Installation is easy, requiring only a power and sonar cable — eliminating the hassles of networking multiple modules and pulling miles of cable. The user interface is controlled with a rotary dial and keypad, ensuring smooth navigation through menus and provides the vital information needed for a safe and enjoyable time on the water — speed, depth, GPS location, course, battery level and temperature information. The included CHIRP Sonar transducer provides excellent automatic depth tracking for worry-free operation without the need for fine tuning or pre-programming. Pre-selected display views consist of: chart, sonar, navigation, chart/sonar, chart/navigation and sonar/navigation.
Available in 5-, 7- and 9-inch versions, Simrad Cruise can be dash-mounted or bracket-mounted to fit any boat’s helm station. Take your charts to the next level with a wide selection from C-MAP® and Navionics® for increased level of detail and C-MAP® Easy Routing. The display is ideal for installation in open air vessels such as bay, deck, ski and wakeboard boats, bow riders and tenders.
1
Specifications
| Connectivity | |
| NMEA 0183 Sentences supported | No |
| Bluetooth | None |
| Ethernet | None |
| N2K PGNs | N/A |
| NMEA 0183 | None |
| NMEA 2000 | None |
| PC Connectivity | None |
| Video | None |
| WiFi | None |
| Display | |
| Backlight Color | White |
| Resolution | 800x480 |
| Screen Brightness | 800 nits |
| Viewing Angles | 70° top/bottom, 70° left/right |
| Electrical | |
| Power Consumption, max. | 12.2 W |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 10 - 17 V DC |
| Environment | |
| Operating Temperature Range | -15°C to +55°C (5° F to 131° F) |
| Waterproof rating | IPX 6 and 7 |
| MFD | |
| AIS | N/A |
| Autopilot | N/A |
| Cartography included | C-MAP |
| Digital Switching | N/A |
| External Storage | 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| Multimedia | N/A |
| Radar (inc. compatibility) | N/A |
| Sonar (inc. compatibility) | Integrated CHIRP. 9 Pin push fit connector |
| Weather | N/A |
| Waypoints, Routes, Tracks | 4000 waypoints, 200 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Physical | |
| Dimensions (W x H x D) | 184.5 mm x 142.3 x 117.9 mm (7.26"" x 5.6"" x 4.64"") (with bracket) |
| Mounting Type | Bracket or Panel |
| Other | |
| Warranty Period | 2 Years |
| Interface | Directional cursor button and rotary knob |
What's in the Box:
- Cruise 5
- Power Cable
- Bracket
- Skimmer transducer 83/200kHz
