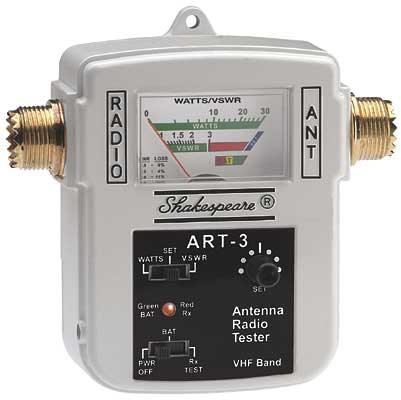

Shakespeare Style ART-3
Tester
No need to call for a radio check when you have this compact, easy to use, unit on-board. Unlike other meters in its class, the AR T-3 tests receiver function as well as output power and VSWR (antenna efficiency) It is powered by an internal battery or can be connected to ships 12 VDC with the supplied power cable. Battery level can be checked at the flip of a switch. No serious boater should be without an ART-3.
Specifications:
Frequency Range: 155-158 MHz
RF Power Scale: 0 to 30 watts
Impedance: 50 ohms
Accuracy: 10%
Connectors: SO-239
Signal Generator: 3 KHz Deviation
Tone: 1000 Hz
RF Level: -115 dBM (approx.)
Die-cast aluminum construction
Style 4079 one-meter cable available (sold separately) to connect the ART-2 or ART-3 to your VHF Radio, or for the Style CS-2 Switch. It has PL-259 connectors on each end, already installed.
