Shakespeare 6225r 8' Vhf Antenna 6db Phase Iii

Shakespeare 6225r 8' Vhf Antenna 6db Phase Iii

Regular price $386.99
Regular price Sale price $386.99
Sale Sold out

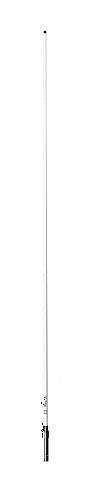

Shakespeare 6225-R 8' VHF Marine Band Antenna

6db Gain, Collinear-phased 5/8-wave elements

Model: 6225-R
UPC: 719441200404

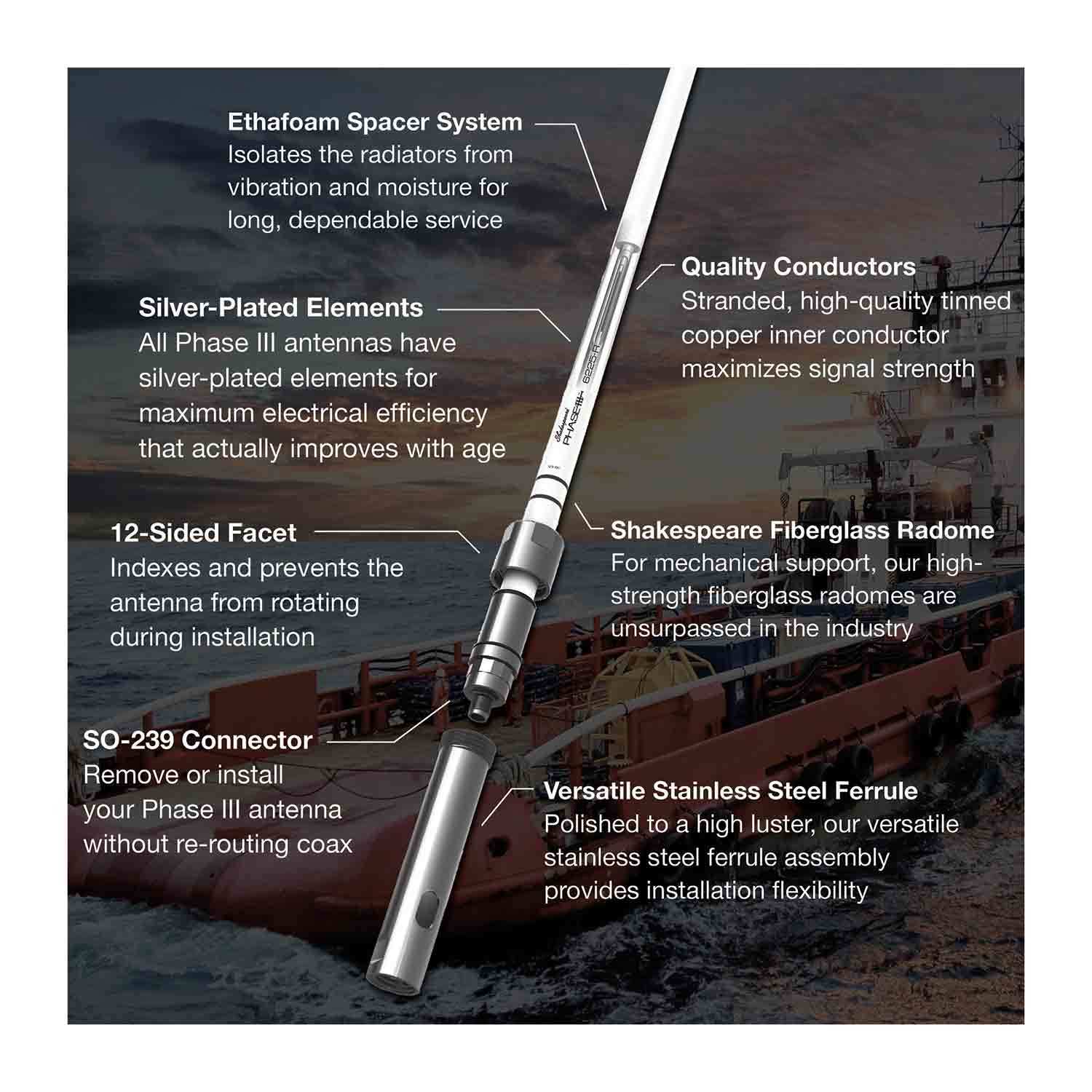

  • Silver-plated outer conductor, copper inner conductor
  • Versatile stainless steel mounting sleeve for standard 1in-14 thread or mast mount
  • PL259 connector inside mounting sleeve for easy mounting and dismounting for stowage
  • Suggested mount: Shakespeare® 4187-HD Ratchet Mount
  • High-strength fiberglass radome
  • High-gloss, high-performance, non-yellowing polyurethane

Built for performance and durability, this flagship Phase III™ VHF antenna will stand strong against high speeds and high winds. Combining our innovative construction of a radome with a sleek and luxurious appearance, this antenna is a master of VHF communication

Specifications
Max-power input 150 watts
SWR Less than 1.5:1 at 156.8 MHz
Bandwidth 3 MHz within 2.0:1 VSWR
Frequency VHF Marine Band
Design Collinear-phased 5/8-wave elements
Height 8'
Gain 6dB
SWR Less than 1.5:1 at 156.8 MHz
Bandwidth 3 MHz within 2.0:1 VSWR
Impedance 50 ohms (nom.)
Pattern Omni-directional
Polarization Vertical
DC grounding Yes
