Seastar

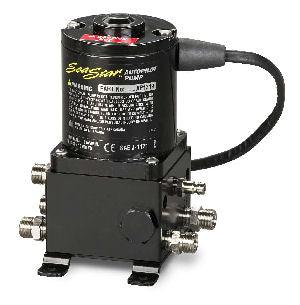

Seastar Ap1219 Type 1 12v Pump 60cu Inch/min
Seastar Ap1219 Type 1 12v Pump 60cu Inch/min
Order and earn 3170 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.
Couldn't load pickup availability
The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).
AUTOPILOT ? KEY FEATURES
-
Long life DC Motor (i.e. long life brushes)
-
Compact design
-
Simplified installation
-
Low power consumption
-
ABYC, CE?s and J1171 compliant
-
Superior corrosion resistance
-
Quiet operation
-
All mounting bracket displacement included
|
|
|
|
| Voltage |
| 12 volt |
|
|
|
|
| Fittings
|
| Compatible w/ Standard Seastar Hose - Thread 9/16" X 24 UNEF |
|
|
|
|
| Wire Details |
|
|
| Length |
| 24" |
| Gauge |
| 12 awg |
| Connector |
| None - Bare Leads |
|
|
|
|
| Oil Compatibility |
| Seastar Steering Fluid (MIL 5606) |
|
|
|
|
| Weight |
| 4.9 lbs (2.2 kg) |
|
|
|
|
| Pump Sizes |
| Type 1: 60 in3/min (no-load) |
|
| Type 2: 100 in3/min (no-load) | |
|
|
|
|
| Maximum Pressure |
| 1000 psi |
|
|
|
|
| Typical Current Draw |
| 12V Type 1: 4 ? 8 amps |
| (Depending on Application) |
| 12V Type 2: 5 ? 11 amps |
|
|
| |
|
|
| |
|
|
| |
| Ram Capacity |
| |
| Type 1 |
| 4.9 in3 - 14 in3 |
| Type 2 |
| 14 in3 - 21 in3 |
