Raymarine

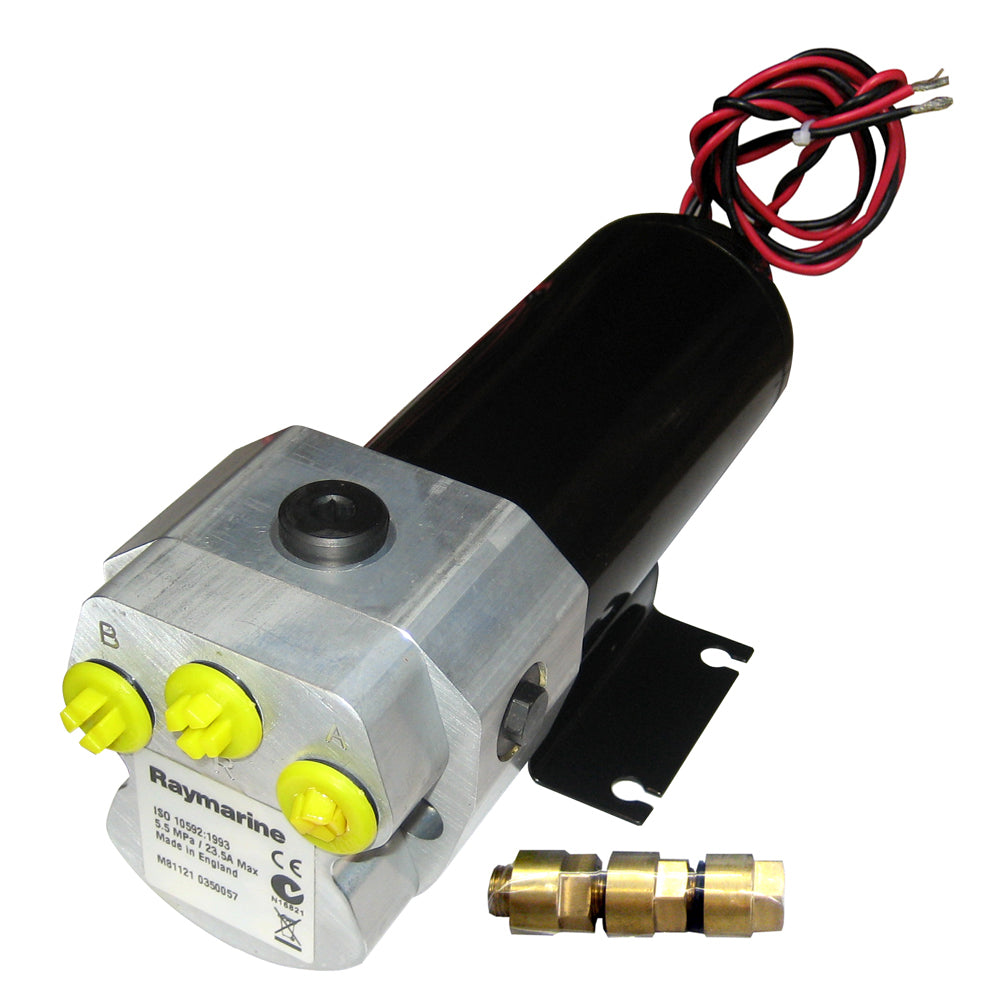

Raymarine Type 1 Pump 12V
Raymarine Type 1 Pump 12V
Regular price
$991.99
Regular price
$1,099.99
Sale price
$991.99
Unit price
/
per
Order and earn 4960 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
Type 1 Pump 12volt
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.
The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack
Corepack Used S1 or S1G
Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V 750psi (50bar)
(no load) 67in/min (1000cc/min)
Corepack Used S2 or S2G
Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V 750psi (50bar)
Peak Flow Rate
(no load) 67in/min (1000CC/min)
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.
The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack
Corepack Used S1 or S1G
Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V 750psi (50bar)
(no load) 67in/min (1000cc/min)
Corepack Used S2 or S2G
Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V 750psi (50bar)
Peak Flow Rate
(no load) 67in/min (1000CC/min)
