Raymarine Tm185hw 1kw Depth And Temperature Chirp Transom Mount

Raymarine Tm185hw 1kw Depth And Temperature Chirp Transom Mount

$1,499.00
$1,499.00
Sale Sold out
FREE SHIPPING AVAILABLE WITHIN THE CONTINENTAL U.S. Outside the U.S. and Canada? Contact us to explore shipping options.

Order and earn 7495 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.

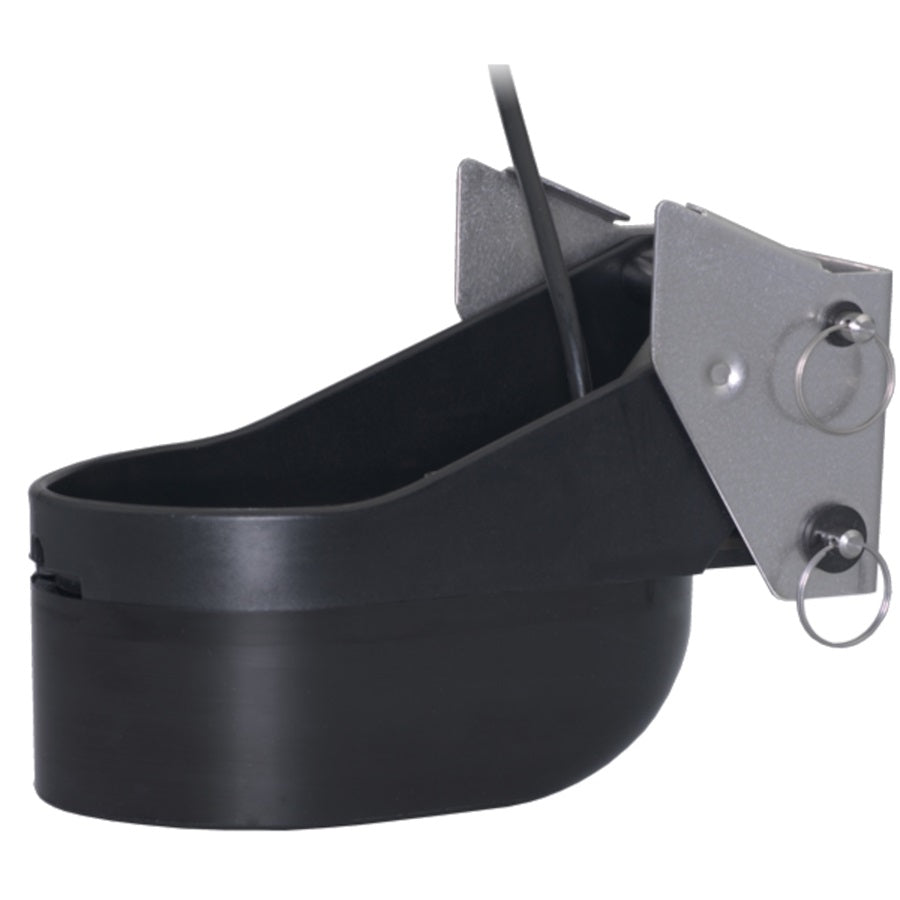

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

Model: A80804
  • Depth and fast-response water-temperature sensing
  • 1 kW of power
  • High frequency: 150 to 250 kHz - Constant 25° beamwidth - Maximum depth of 152 m (500')
  • 100 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • Stainless steel bracket for installation on outboard or inboard/outboard powered boats
  • Recommended for use on planing and displacement hulls
  • SEALCAST™, seamless, urethane housing for long life in the water
  • Also available as thru-hull Tilted™ Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts
  • Patented Xducer ID® technology

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

Specifications
Power Rating 1 kW
Transom Angle 3° to 21°
Functions Depth, Temperature
Max Vessel LOA Up to 10 m (33')
Acoustic Window Urethane
Common Use Leisure/Yachting, Fishing
Freq Hi Wide 150-250 kHz
High-Wide Beamwidth 25°
Housing Urethane/Stainless Bracket
Hull Material Compatible w/ all hull materials
Max Depth 150 m (500')
Mounting Style Transom
Retractable housing No
Single or Dual Frequency CHIRP-Ready Single-Band
Tilted Element No
Weight: 4.2 kg (9.2 lb.)
