Raymarine

Raymarine Ev300 Solenoid Autopilot

Raymarine Ev300 Solenoid Autopilot

Regular price $3,499.99
Regular price Sale price $3,499.99
Sale Sold out

Raymarine EV300 Solenoid

Autopilot

Model: T70160
  • For vessels with solenoid controlled hydraulic steering
  • Evolution Ai for superior performance
  • No calibration required
  • SeaTalkNG Network Compatible
  • ACU-300 auxiliary power to SeaTalkNG network

Evolution EV-300 Solenoid Autopilot Kit without Drive for Power Vessels by Raymarine®. No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

Specifications
ACU Nominal Power supply 12 V or 24 V
ACU Operating voltage range 10.8 V to 31.2 V dc
ACU Power consumption (standby) — main power supply 300 mA (12 / 24 V)
ACU Power consumption(standby) — SeaTalkng power supply 20 mA (12 V)
ACU SeaTalkng LEN (Load Equivalency Number) 1
ACU SeaTalkng LEN (Load Equivalency Number) 3 A at 12 V (fuse protected at 3 A)
ACU Data connections SeaTalkng
ACU Waterproofing rating drip resistant
ACU Operating temperature -20°C to +55°C (-4°F to +131°F)
ACU Relative Humidity max 93%
ACU Weight 2.2 kg (4.84 lbs)
EV Sensor Nominal Power supply 12 V (powered by SeaTalkng system)
EV Sensor Operating voltage range 10.8 V to 15.6 V dc
EV Sensor Power consumption 30 mA
EV Sensor SeaTalkng LEN (Load Equivalency Number) 1
EV Sensor Waterproofing rating IPX 6
EV Sensor Operating temperature -20°C to +55°C (-4°F to +131°F)
EV Sensor Relative Humidity max 93%
EV Sensor Sensors 3-axis digital accelerometer; 3-axis digital compass and 3-axis gyro digital angular rate sensor
EV Sensor Weight 0.29 kg (0.64 lbs)

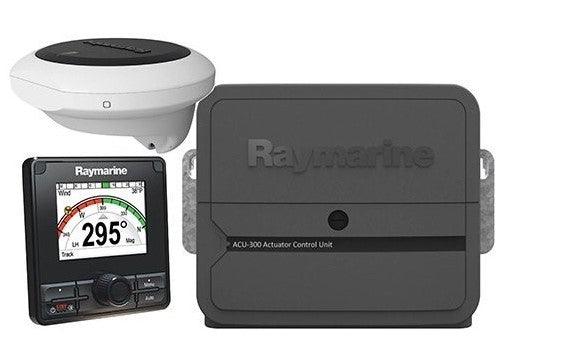

What's in the Box:
  • EV-1 Sensor Core
  • p70R Autopilot Control Head
  • ACU-300 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
  • Evolution Cabling Kit
  • EV Unit O-Ring Pack (set of 2)
  • Wall Mounting Bracket
