Raymarine

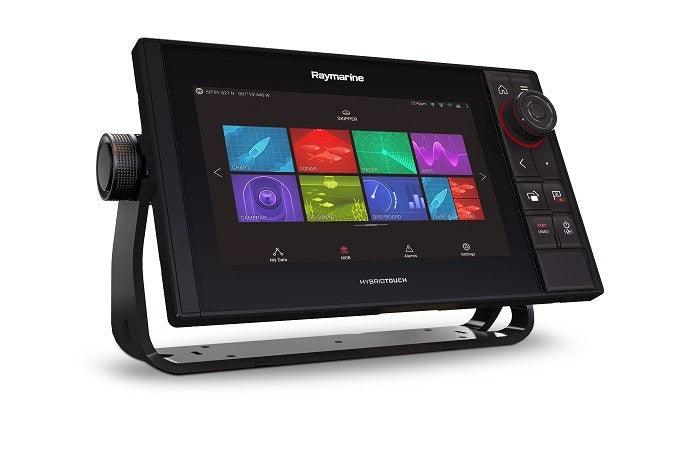

Raymarine Axiom Pro 9s Mfd No Transducer No Charts

Raymarine Axiom Pro 9s Mfd No Transducer No Charts

Regular price $2,749.99
Regular price Sale price $2,749.99
Sale Sold out

Raymarine Axiom Pro 9S 9"" MFD With Single Channel CHIRP

Model: E70481
  • High CHIRP
  • NMEA2000 & NMEA0183
  • Sonar Scroll Back
  • HybridTouch™
  • Quad Core Processor
  • Optical Bonding Technology & IPS Displays
  • IP & Analog Video
  • Clear Cruise™
  • Quantum CHIRP, HD & SHD
Specifications
Display Size 9"" IPS Optically Bonded LCD
Display Resolution 1280 x 720 WXGA
Display Type Multitouch
Brightness 1,200 nits
Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
Mounting Top, Front, Bracket
Waterproof Rating IPX6 / IPX7
Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C)
Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C)
Sensors
Sonar Type - Built-in High CHIRP
Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.
Sonar Depth CHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m)
External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS Yes - N2K compatible
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes - IP or Analogue
Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only
Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]
Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]
Remote Control RMK-10 (A80438) & RCU-3 (E62351)
Networking
Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet)
NMEA0183 1 Transmit / 2 Receive
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)
USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
Wi-Fi WiFi - 802.11 a / b / g / n
BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]
Navigation
Cartography Lighthouse, Navionics, C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update]
Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal 16GB Solid State
16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
Input Voltage 12V and 24V DC (8 V to 32 DC)
Input Draw ~20W
Dimensions 11.9"" x 6.85"" x 2.56"" (300 x 174 x 65 mm)

What's in the Box:
  • Axiom Pro 9S
  • RayNet (F) to Raynet (F) Cable — 2M (A62361)
  • Trunnion Cover
  • Trunnion Knobs
  • Trunnion Bracket
  • Suncover (A80534)
  • Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)
  • Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)
  • Panel Seal Gasket
  • Bezel Pieces and Home / Menu Button
  • Mounting Fixings
  • Quick Start Guide
  • Warranty Card
  • Raymarine window decal
