Raymarine

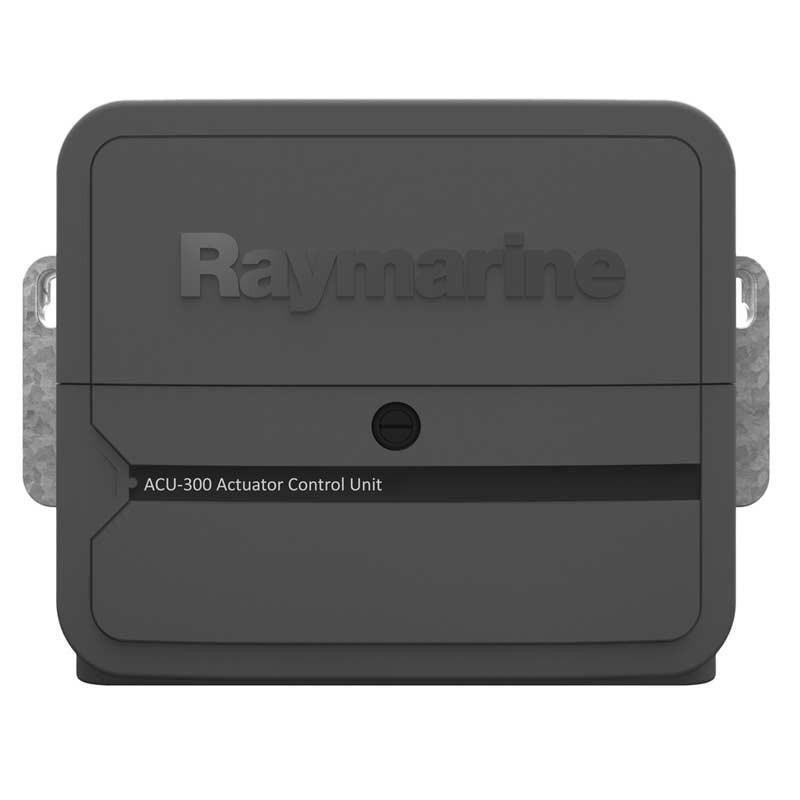

Raymarine Acu-300 Actuator Control Unit

Raymarine Acu-300 Actuator Control Unit

Regular price $1,994.99
Regular price Sale price $1,994.99
Sale Sold out
Raymarine Evolution ACU Specifications
Model  ACU-100   ACU-200   ACU-300   ACU-400
  E70098 E70099 E70139 E70100


Drive Current Output  Maximum continuous

7 A at supply voltage

Maximum continuous 15 A at supply voltage Maximum continuous 5 A

at supply voltage

Maximum continuous

30 A at supply voltage

Drive Clutch Output  No clutch connection Up to 2.0 A continuous, selectable between 12 /24 V No clutch connection
  • Up to 4 A continuous at 12 V on 12 V systems,
  • Up to 4 A continuous at 24 V on 24 V systems,
  • Up to 4 A continuous at 12 V on 24 V systems
Connections
  • Rudder reference sensor
  • Power
  • Drive motor
  • Ground

  • Rudder reference sensor
  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • Ground

  • Rudder reference sensor
  • Sleep switch
  • Power
  • Solenoid drive out / return
  • Ground

  • Rudder reference sensor
  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • 723193767962 Ground
  • Digital Input / Output (DIO)
Nominal supply voltage

12 V

12 V or 24 V

Operating voltage range

10.8 V to 15.6 V dc

10.8 V to 31.2 V dc

Power consumption (standby) - main power supply

300 mA (12V)

300 mA (12/24 V)

Power consumption (standby) - SeaTalkng power supply

No power supply to SeaTalkng&nbs p;

20 mA (12V)

SeaTalkng LEN

(Load Equivalency Number)

1

SeaTalkng Power out

No power supply to SeaTalkng

3 A at 12 V (fuse protected at 3 A)

Data connections

SeaTalkng

Installation environment

Operating temperature: -20°C to +55°C (-4°F to +131°F)

Storage temperature: -30°C to +70°C (-22°F to +158°F)

Relative humidity: max 93%

Waterproof rating

Connector panel: IPX2

Drive electronics: IPX6

Drip resistant

Dimensions

(W x H x D)

180 mm x 140 mm x

52 mm

(7.1 in x 5.5 in x 2.0 in)

285 mm x 211.5 mm x 64.5 mm

(11.2 in x 8.3 in x 2.5 in)

Weight

0.6 kg (1.32 lbs)

2.2kg (4.84 lbs)

Conformance

Europe: 2004/108/EC

Australia and New Zealand: C-Tick, Compliance Level 2
