RAM Mounting Systems

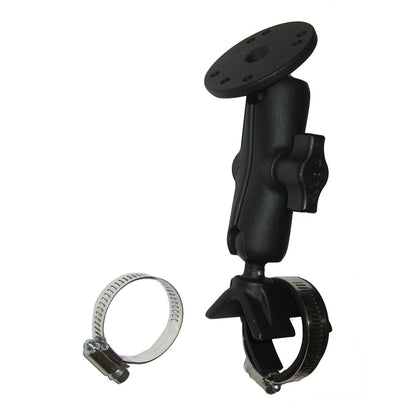

RAM Mount Strap Mount w/Arm & Round Base
RAM Mount Strap Mount w/Arm & Round Base
Regular price
$45.99
Regular price
$51.49
Sale price
$45.99
Unit price
/
per
Order and earn 230 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability

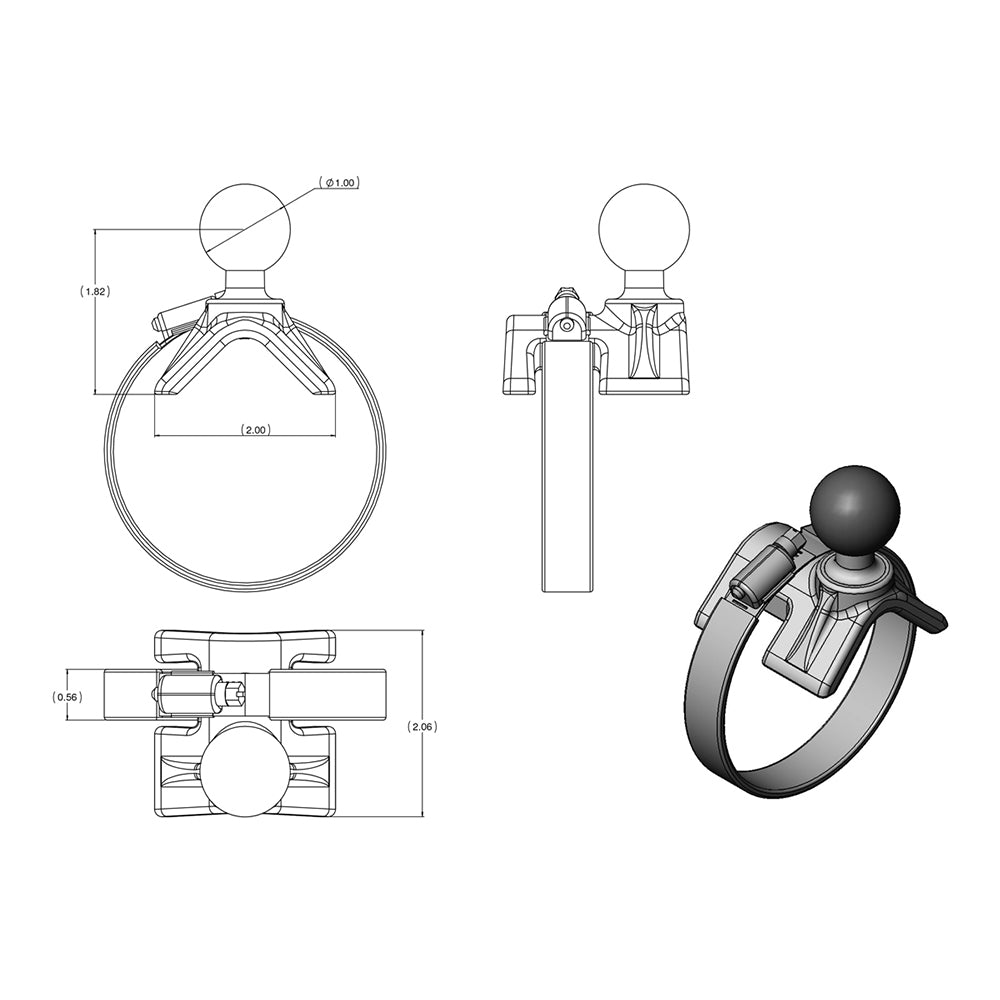

RAM Mount Strap Mount w/Arm this allowing for almost infinite adjustment and perfect viewing angles.
Rail Dimensions:
1.0" to a maximum of 2.1" in diameter
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Included in Kit:
(1) QTY 6" long metal strap
(1) QTY 8" long metal strap
(1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail
Mounting Instructions:
To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108U is an alternative mounting base for Beechcraft airplanes with a "throw over yoke".
Note:
The "U" in the part number reflects product packaged in poly bag.
Rail Dimensions:
1.0" to a maximum of 2.1" in diameter
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Included in Kit:
(1) QTY 6" long metal strap
(1) QTY 8" long metal strap
(1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail
Mounting Instructions:
To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108U is an alternative mounting base for Beechcraft airplanes with a "throw over yoke".
Note:
The "U" in the part number reflects product packaged in poly bag.
