RAM Mount RAM Tough-Tray III Spring-Loaded Laptop Tray

RAM Tough-Tray III Spring-Loaded Laptop Tray

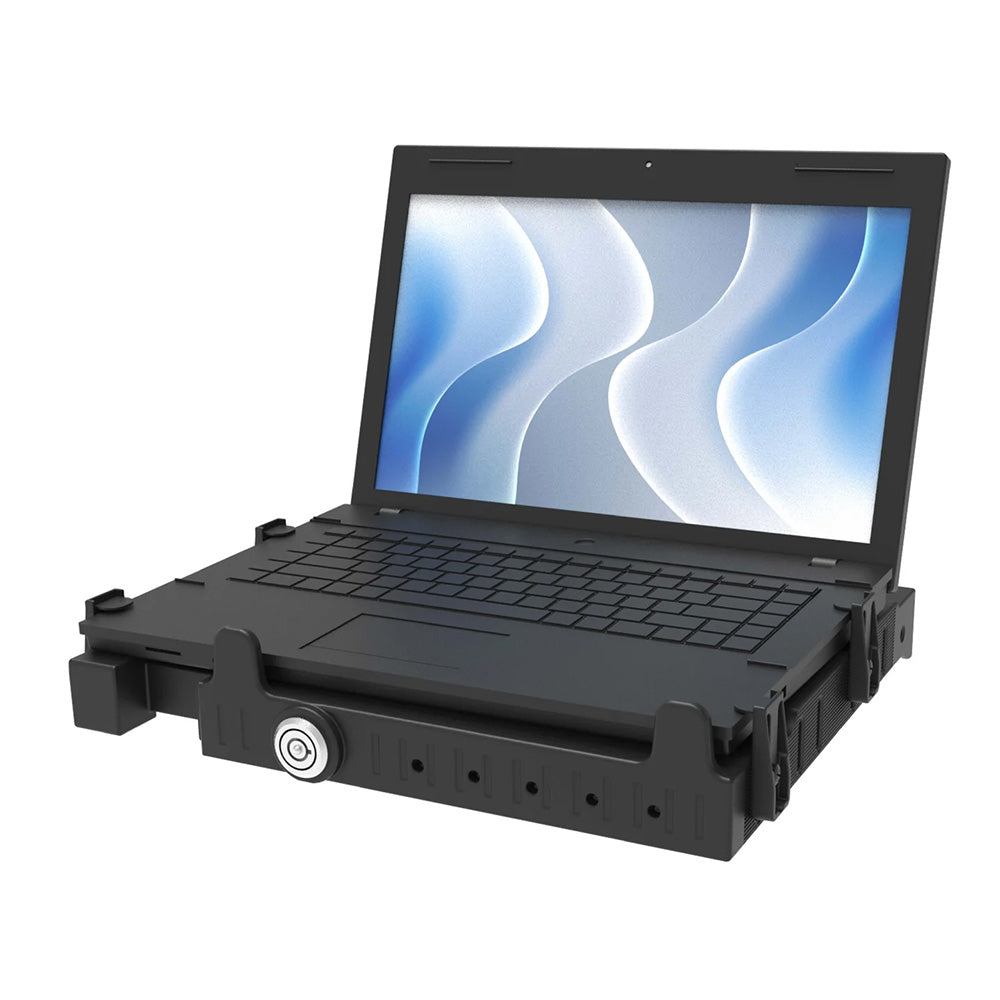

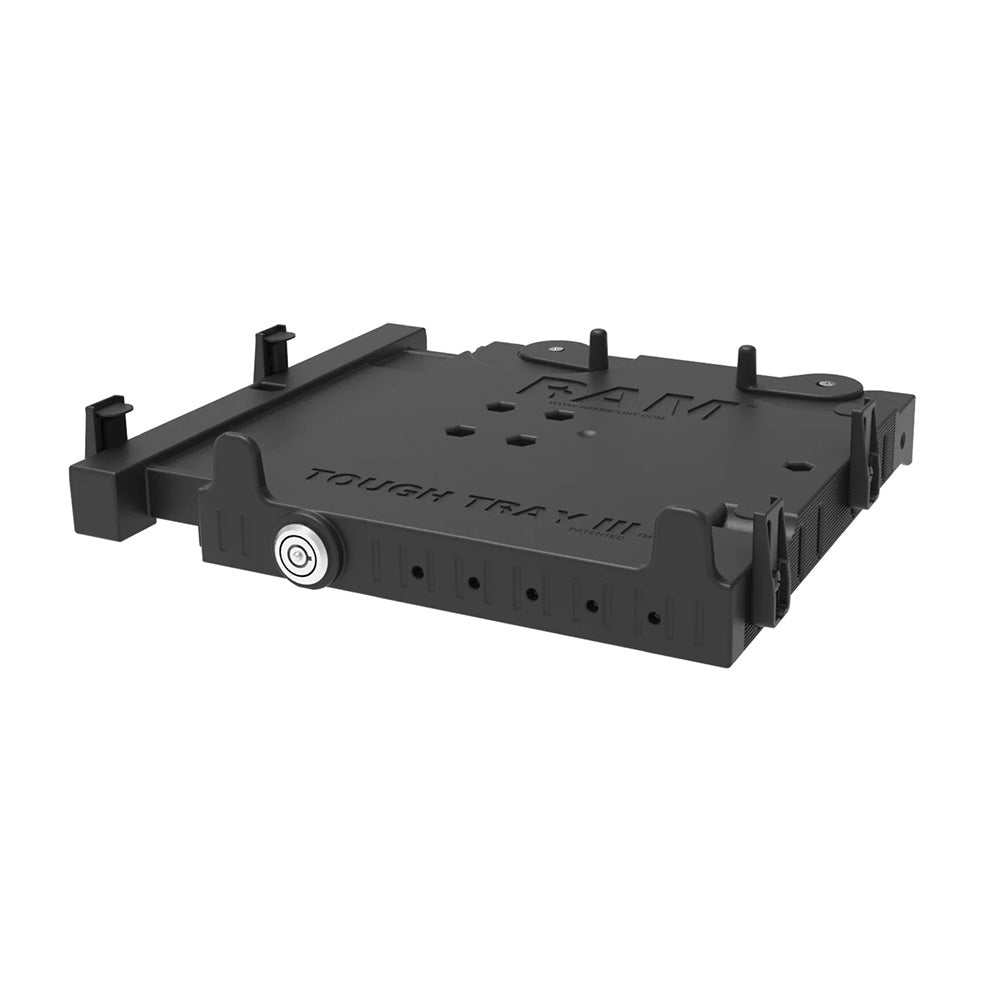

The RAM Tough-Tray III Spring-Loaded Laptop Tray (RAM-234-7) is a rugged, highly adjustable vehicle and marine laptop mounting solution designed for secure use in mobile workstations, fleets, boats, and off-road environments. This third-generation Tough-Tray improves on earlier designs with a reduced footprint, enhanced adjustability, and simplified assembly. The spring-loaded cradle expands from 10 to 15 wide, securely accommodating laptops up to 17 inches (measured diagonally). Adjustable side supports fit laptops ranging from 0 to 1.875 thick and include two interchangeable support lengthslong supports for rugged laptops, and shorter supports for slim devices. Side supports adjust horizontally to avoid blocking ports and feature foam padding to protect devices from vibration and scuffs. Swiveling rear supports accommodate laptop depths from 7.625 to 10.625, ensuring a secure and customized fit. An integrated tubular cam lock provides added security by locking the laptop in place, making this tray ideal for professional and commercial applications.

The Tough-Tray III also features a built-in recess for the RAM Adjustable Laptop Screen Support, allowing it to nest cleanly when not in use, and is compatible with the RAM Power Caddy for convenient power management. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners.

Features:

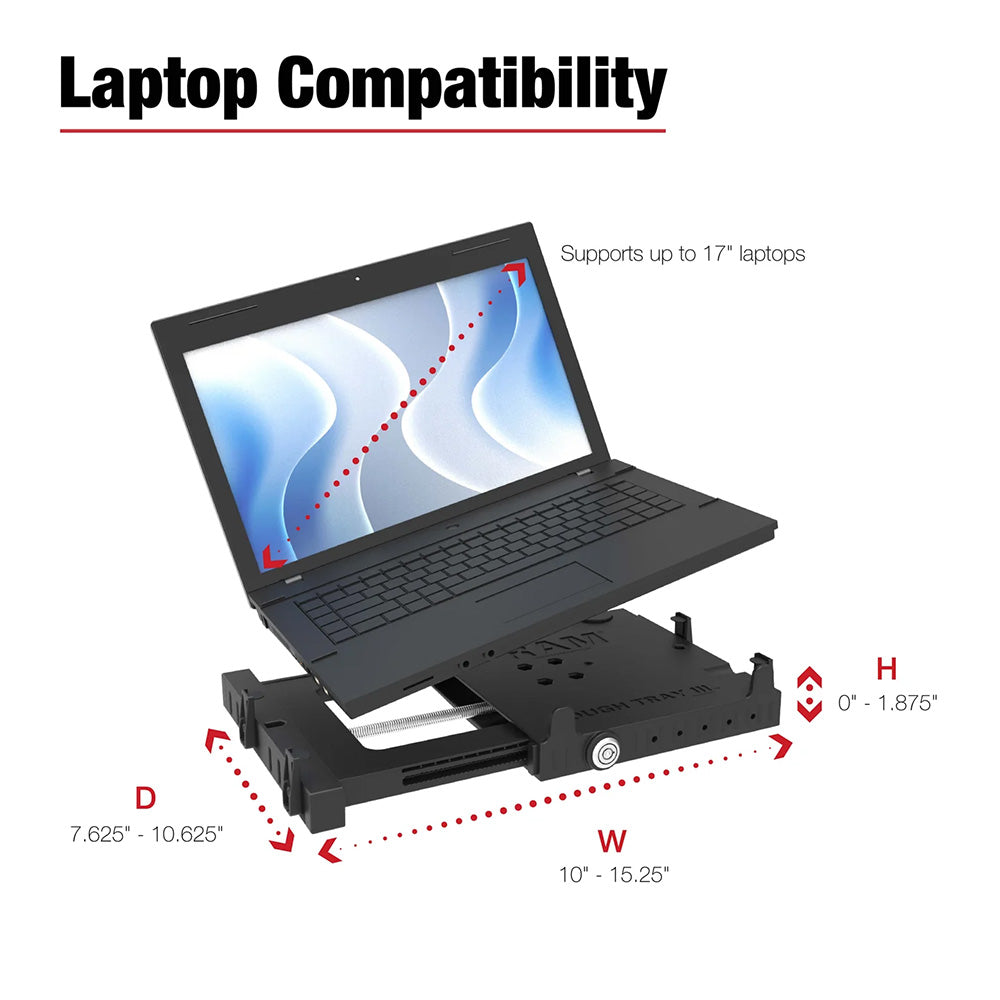

• Spring-loaded universal laptop tray accommodates most 10 to 17 laptops (measured diagonally)
• Adjustable supports keep the laptop secure and leave the ports accessible
• Compatible with RAM Power Caddy and Adjustable Screen Support
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Specifications:

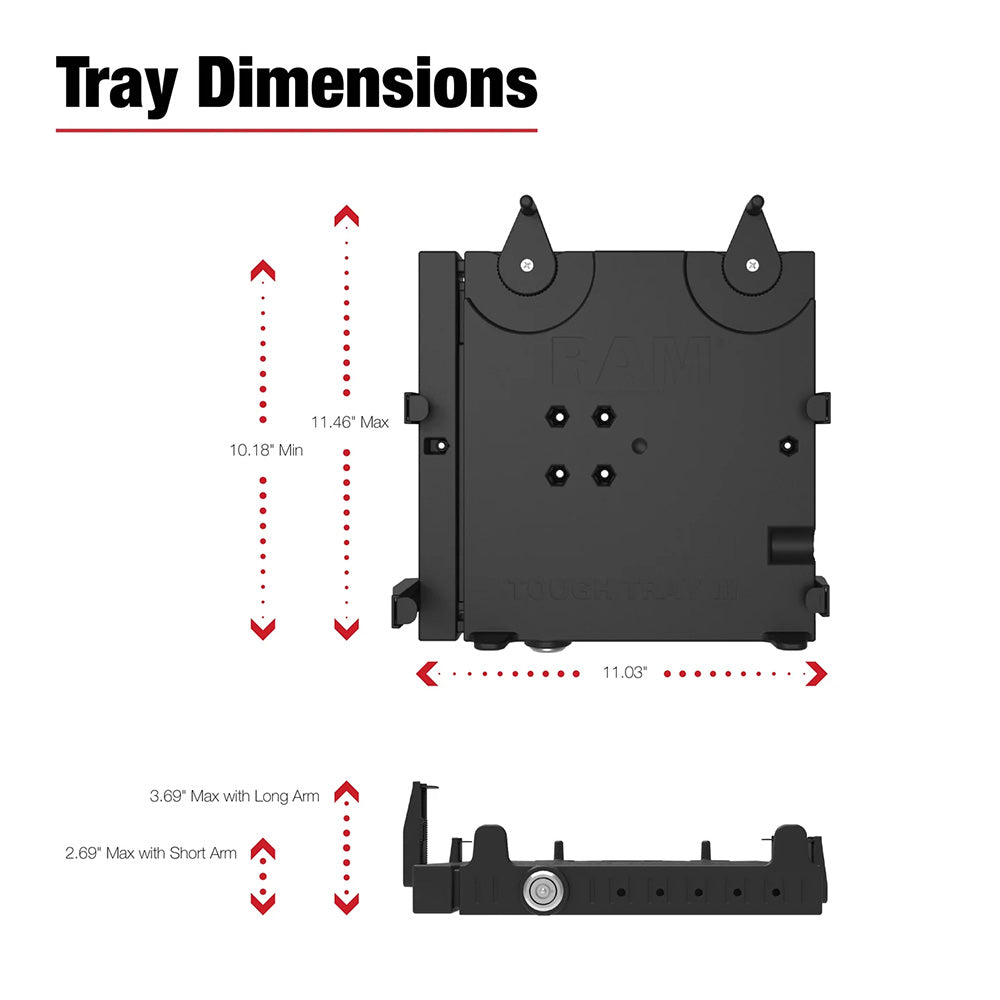

Tray Dimensions:

• Width Range: 10 - 15.25
• Side Arm Clamp Height: 0 - 1.875
• Depth Range: 7.625 - 10.625
• Tray Thickness: 1.26

Hole Pattern:

• 4-Hole AMPS: 1.181 x 1.496

Weight:

• 2.48 lb

Hardware Included:

• (2) Keys
• (4) #10-24 x 3/4 Machine Screws
• (4) #10-24 Nylock Nuts
