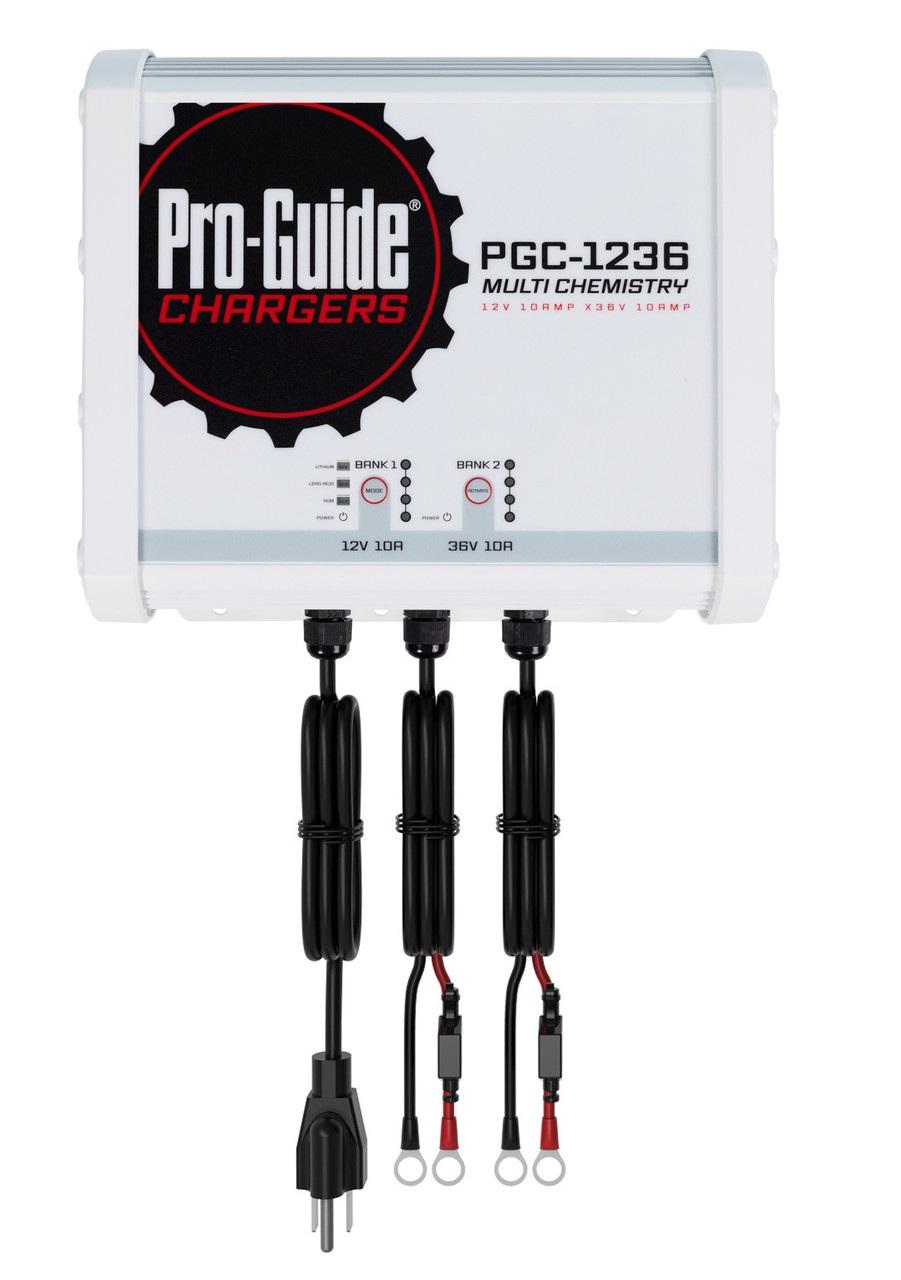

Pro-Guide PGC1236 2-Bank 1x12V/10A Lead Acid/LiFePo4 and 1x36V 10A LiFePO4 On Board Charger, IP68

Pro-Guide PGC1236 2-Bank 1x12V/10A Lead Acid/LiFePo4 and 1x36V 10A LiFePO4 On Board Charger, IP68

Pro-Guide PGC-1236 12V Lead Acid / AGM / Lithium & 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a Single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.

Battery Type
12V Lead Acid / AGM / Lithium & 36V Lithium

Output Voltage
DC 12V x 1 & DC 36V x 1

Max Output Voltage
14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery, & 43-44 for 36V Lithium Battery

Output Current
10A x 2

Length (in / mm)
10.47in / 266mm

Width (in / mm)
9.96in / 253mm

Height (in / mm)
3.86in / 98mm

Weight (lbs / kg)
17.9lbs / 8.1kg

IP Rating
68
