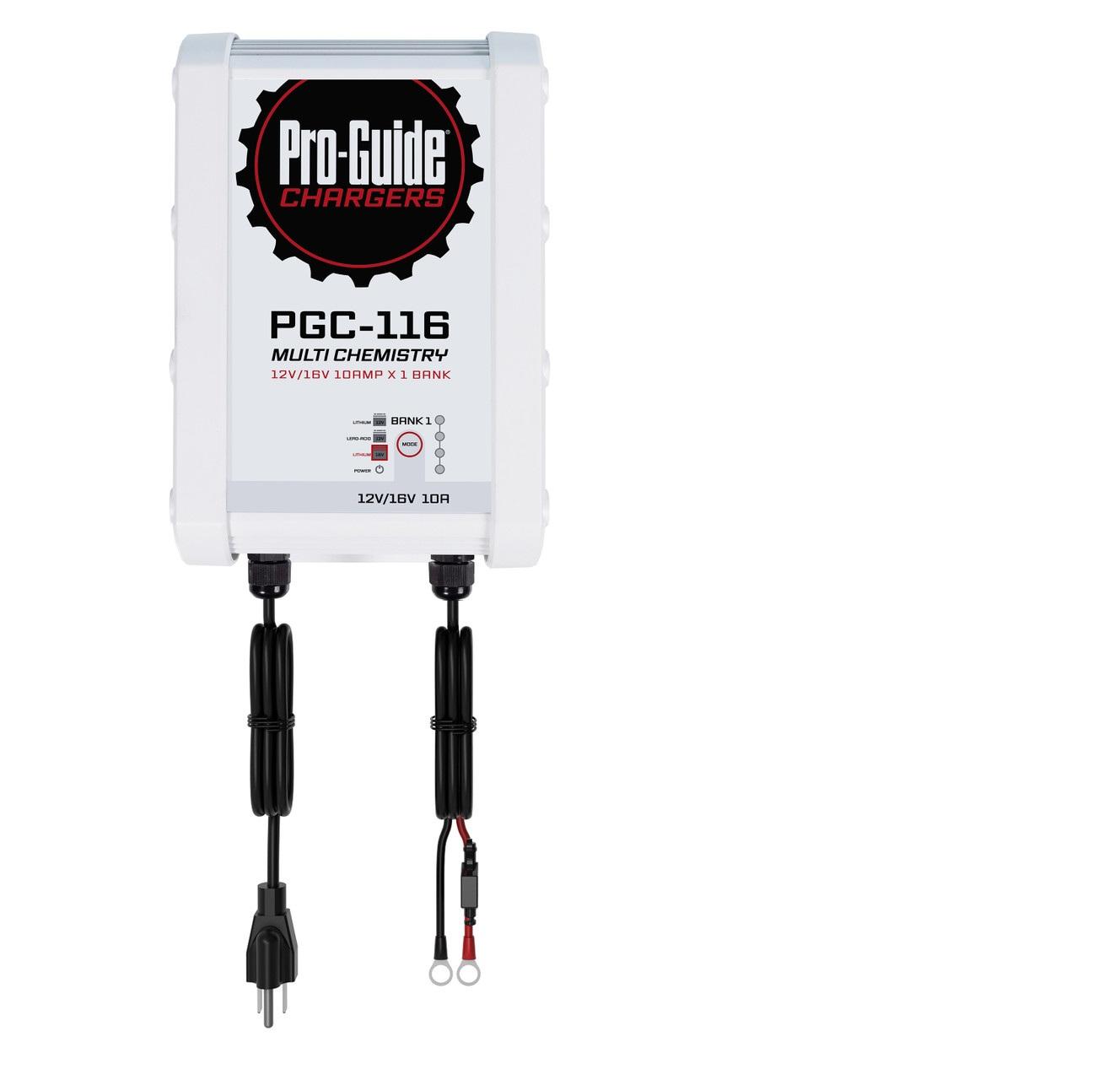

Pro-Guide 1-Bank 12/16V 10A AGM/LiFePO4 On Board Charger, IP68

Pro-Guide 1-Bank 12/16V 10A AGM/LiFePO4 On Board Charger, IP68

Pro-Guide PGC-116 12V AGM / Lithium & 16V Lithium on-board battery charger.

Each 12V Bank can select one of two charge profiles and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.

Battery Type
12V AGM / Lithium & 16V Lithium

Output Voltage
DC 12V/16V x1

Max Output Voltage
14.3-14.7 for 12V AGM Battery, 14.4-14.7 for 12V Lithium Battery, & 18-18.3 for 16V Lithium Battery

Output Current
10A for 12/16V Bank

Length (in / mm)
6.02in / 153mm

Width (in / mm)
9.96in / 253mm

Height (in / mm)
3.86in / 98mm

Weight (lbs / kg)
9.9lbs / 4.5kg

IP Rating
68
