Newmar Ra-2 Cable Feed-thru 0.27-0.35 Inch Cable Diameter
Newmar Ra-2 Cable Feed-thru 0.27-0.35 Inch Cable Diameter
Order and earn 315 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability

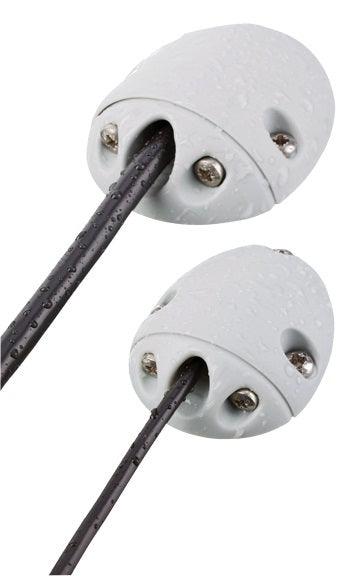

RA Series Right Angle Waterproof Feed-Thru Fittings
Route cables at 90° through vertical and horizontal surfaces with wall
hugging low profile design that keeps cable secured close to the surface reducing intrusion with personnel or other equipment / cables.
Molded of nylon, the Sculpted shape has no sharp edges and provides
radiused 90° feed-thru bend in cables without damage.
Easy installation: slide silicone compression rings on cable, mount base piece with waterproof gasket then attach sealing end cap to create an IP 65 waterproof seal. Note cable must be routed without end connector attached.
Three models to accommodate wide range of cable diameters.
| Model | Cable Diameter Range (Inches) | Dimensions (Inches) |
| RA-1 | 0.1 - 0.25 | 2.17 x 1.65 x 0.63 |
| RA-2 | 0.27 - 0.35 | 3.23 x 2.44 x 0.95 |
| RA-3 | 0.39 - 0.47 | 3.23 x 2.44 x 0.95 |
