Newmar Ns-12-20 Nav Start Guard
Newmar Ns-12-20 Nav Start Guard
Order and earn 1400 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability

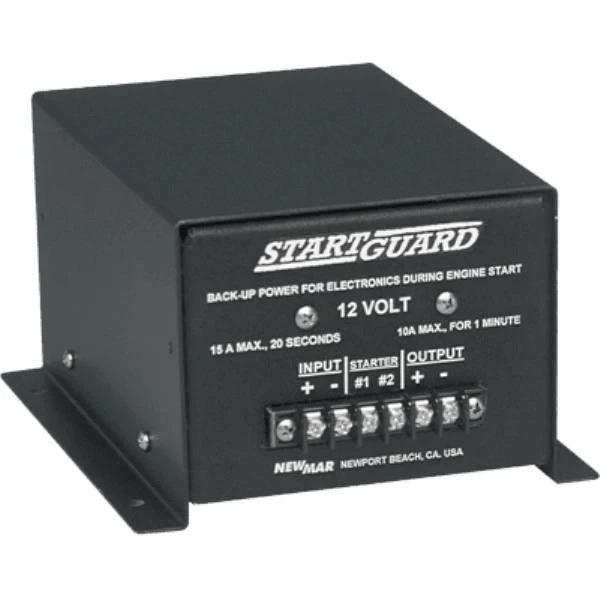

DC UPS: StartGuard
The abrupt DC system voltage drop that accompanies engine starting can cause communication/navigation electronics to ""dump"" programmed memory.
StartGuard solves this problem by providing supplemental voltage to sensitive electronics while the engine is cranked. It contains a sealed rechargeable battery which is switched on-line to electronics when sensing the starter switch or solenoid is engaged. When the engine is running StartGuard automatically goes off-line and the internal battery is recharged by the alternator.
Specifications
Input Voltage: 13.8 - 14.8 VDC nominal, 15.5 VDC max.
Relay Activation Input Voltage: 7-15 VDC
Output: 20 amps max.
Battery: 12 VDC, sealed rechargeable, 5- 7 year life (typical), 5 amp-hour capacity, Certified by DOT and IATA for shipment by air.
Back-up Capacity (Fully Charged): (See matrix)
| Model | Input | Back-Up Capacity | Dimensions | Weight | |||
| 1 Minute | 2 Minutes | Inches | Centimeters | Lbs | Kg. | ||
| NS-12-20 | 13.8-14.8 VDC Nominal 15.5 VDC Max | 20 amps | 18 amps | 8.25 x 4.9 x 3.5 | 20.1 x 12.5 x 8.9 | 5.5 | 2.5 |
