Newmar
Newmar Cs-2 Connector Strip F/ 14g Wire
Newmar Cs-2 Connector Strip F/ 14g Wire
Regular price
$18.99
Regular price
$21.75
Sale price
$18.99
Unit price
/
per
Order and earn 95 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.
Couldn't load pickup availability

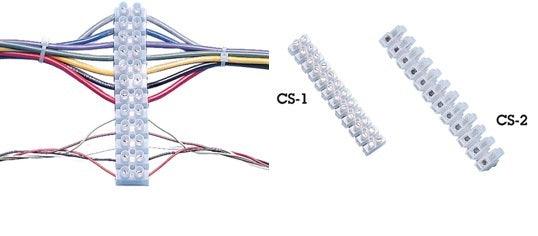

- Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger"" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.)
- Strips are easily cut to meet wiring requirements and space limitations.
Β
| Model | # of Terminal Pairs | Max Wire Gauge | Max Amps* | Size |
| L X W X H | ||||
| CS-1 | 12 | 16 | 6 | 3.75"" x .675"" x .5"" |
| CS-2 | 12 | 14 | 10 | 4.5"" x .75"" x .75"" |
