Newmar
Newmar Bb-8 Bus Bar
Newmar Bb-8 Bus Bar
Regular price
$147.99
Regular price
$178.54
Sale price
$147.99
Unit price
/
per
Order and earn 740 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.
Couldn't load pickup availability

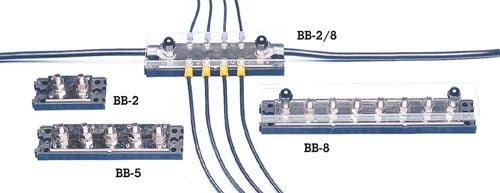

- Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16"" studs on 1"" centers in 1/4"" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16"" ring terminals.
- One combination model features two 5/16"" studs and eight #8 screws, accommodating multiple size wire terminals.
- All bus material is nickel-plated copper.
- A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
- The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.
| Model | Qty. of 5/16"" Studs | Base Size |
| BB-2 | 2 | 3 1/16"" x 1 1/2"" |
| BB-2/8 | 2 plus 8 - #8 screws | 6 1/16"" x 1 1/2"" |
| BB-5 | 5 | 6 1/16"" x 1 1/2"" |
| BB-8 | 8 | 9 1/16"" x 1 1/2"" |
