Newmar 1-3-165 Battery Isolator
Newmar 1-3-165 Battery Isolator
Order and earn 1910 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.
Couldn't load pickup availability

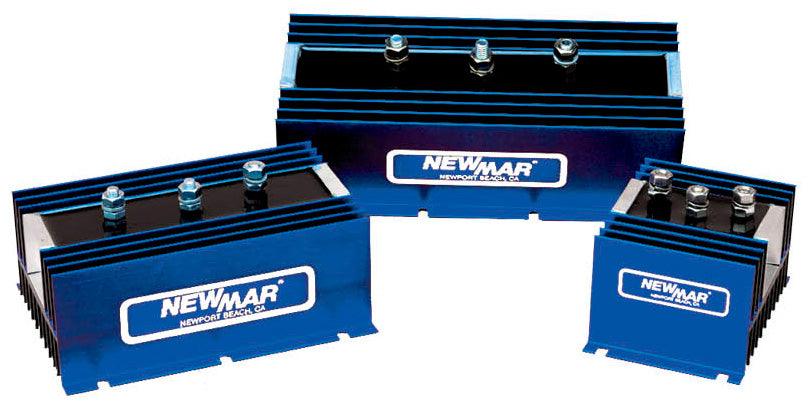

Newmar 1-3-165 Battery Isolator
Model: 1-3-165- Heavy duty construction
- Rated for systems up to 48 volts DC, negative ground
- Rust-proof anodized aluminum case
- Stainless steel mounting hardware provided
- Protective covers provided for terminals
These heavy duty isolators allow charging multiple batteries automatically from one or two alternators, and prevent discharge or ‘dumping" of one battery into another. Each battery is charged according to its need without overcharging, rated for 12, 24, or 36 volt, negative ground DC systems.
Note: This battery isolator is not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration
Specifications| Alternator Sources | 1 |
| Battery Bank | 3 |
| Max. Amperage Input Capacity | 165 |
| Operating Temperature | -40 to +80° |
| Duty Cycle | Continuous rating to 50° C Derate linearly to 70% @ 80° C |
| Temp. Rise | 5° C at full rated current (mount vertically for optimum cooling) |
| Voltage Drop | 0.7V @ 50% load, 0.9V @ full load |
