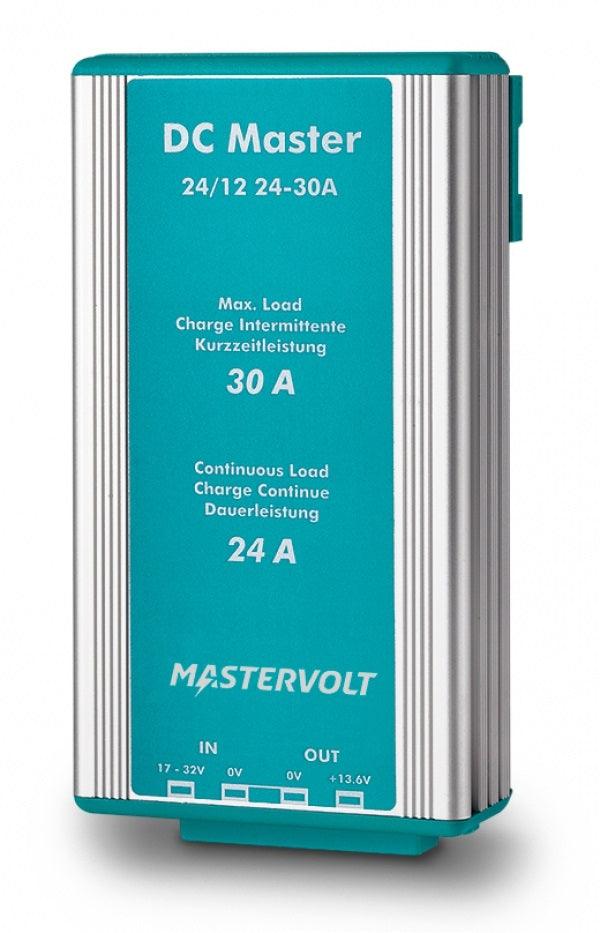

Mastervolt Dc Master 24/12-24a 24vdc To 13.6 Vdc - 24a
Mastervolt Dc Master 24/12-24a 24vdc To 13.6 Vdc - 24a
Regular price
$312.84
Regular price
Sale price
$312.84
Unit price
/
per
Mastervolt DC master 24/12-24A DC-DC Converter, Non-Isolated
Model: 81400330- Recreational and semi-professional use.
- Easy to install using included mounting bracket, screws and fasteners.
- Smart electronics mean no unnecessary heat generation.
- Continuous output.
- Two minutes of extra power for short power boosts.
General Specifications | |
Nominal output voltage | 13.6 V |
Max. output power | 408W |
Nominal output power | 326W |
Max. output current (for 2 min. intervals) | 30A |
Continuous output current | 24A |
Nominal input voltage | 24V |
Input voltage range | 20-32V |
Galvanic isolation | No |
Stabilised | Yes |
Approvals | CE, E-mark |
Technical Specification | |
DC consumption | < 10 mA |
Connections | Fast-on |
Temperature range (ambient temp.) | -13 °F to 176 °F |
Sound level | < 30 dBA at 1 mtr |
Protection degree | IP53 |
Cooling | Natural cooling |
Dimensions | 6.6 x 3.4 x 2.0 inch |
What's in the Box:
- DC Master 24/12-24A Non isolated
- Mounting bracket with fastenrs
- Documentation
