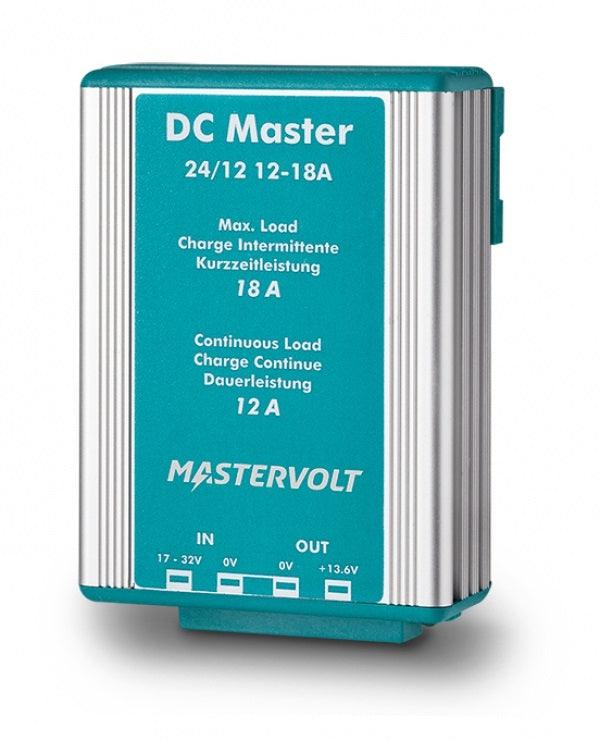

Mastervolt Dc Master 24/12-12a 24vdc To 13.6 Vdc - 12a

Mastervolt Dc Master 24/12-12a 24vdc To 13.6 Vdc - 12a

$109.99
$143.99 $109.99
Sale Sold out
FREE Shipping Available in the Continental U.S. Outside the Continental U.S. or Canada? Contact us to explore shipping options.

Order and earn 550 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

Mastervolt DC master 24/12-12A DC-DC Converter, Non-Isolated

Model: 81400300
  • Recreational and semi-professional use.
  • Easy to install using included mounting bracket, screws and fasteners.
  • Smart electronics mean no unnecessary heat generation.
  • Continuous output.
  • Two minutes of extra power for short power boosts.
Specifications
General Specifications
Nominal output voltage 13.6 V
Max. output power 245W
Nominal output power 164W
Max. output current (for 2 min. intervals) 18A
Continuous output current 12A
Nominal input voltage 24V
Input voltage range 20-32V
Galvanic isolation No
Stabilised Yes
Approvals CE, E-mark
Technical Specification
DC consumption < 10 mA
Connections Fast-on
Temperature range (ambient temp.) -13 °F to 176 °F
Sound level < 30 dBA at 1 mtr
Protection degree IP53
Cooling Natural cooling
Dimensions 5.0 x 3.4 x 2.0 inch

What's in the Box:
  • DC Master 24/12-12A Non isolated
  • Mounting bracket with fastenrs
  • Documentation
