Mastervolt Chargemaster 25a 12v Output 120/230v Input
Mastervolt Chargemaster 25a 12v Output 120/230v Input
Couldn't load pickup availability

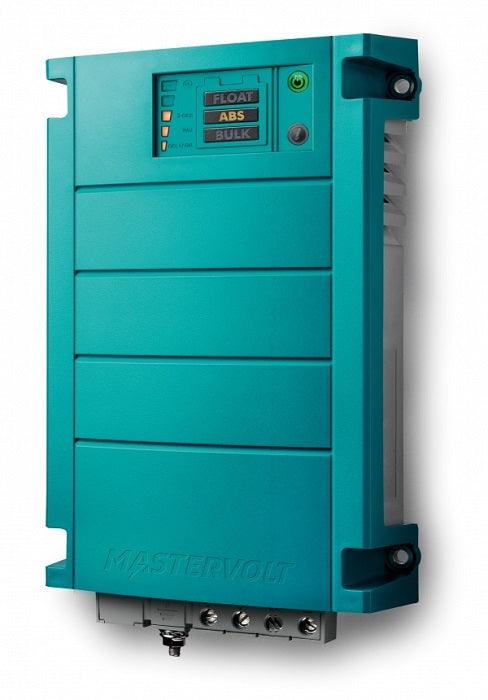

mastervolt ChargeMaster 12/25-3 Battery Charger
Model: 44010250- 3-Step+ charging technology for fast and complete charging.
- Safe and complete charging due to standard safety features.
- Memory function prevents overcharging in case of an unstable power supply.
- Clear control panel.
- Easy to install
- Built-in system functionality (MasterBus) in combination with other Mastervolt products (not available on ChargeMaster 12/10 and ChargeMaster 12/15-2).
Make the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. The ChargeMaster can charge multiple battery banks simultaneously thanks to its combined functionality. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (not available on ChargeMaster 12/10 and ChargeMaster 12/15-2). You also have the option of central, local or remote monitoring, configuration and control of your system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.
The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.
Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.
The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.
Specifications| General Specifications | |
| Total charge current | 25A |
| Number of battery outlets | 3 |
| Nominal output voltage | 12V |
| Charge current second output | 25A |
| Charge current third output | 25A |
| Battery capacity range | 50-250ah |
| Nominal input voltage | 120/230 V (90-265 V), 50/60 Hz |
| AC connection | 2 mtr AC cable |
| Power supply mode | yes |
| Display/read-out | LED display |
| Technical specifications | |
| Charge characteristic | IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion |
| Charge voltage Bulk | 14.4V |
| Charge voltage Absorption | 14.25V |
| Absorption time | 4 hours |
| Charge voltage Float (wet batteries) | 13.25V |
| Charge voltage Float (gel/AGM batteries) | 13.8V |
| Voltage compensation | Automatic |
| Power consumption (DC side) | < 2 mA |
| Full load consumption (230 V AC) | 450 W |
| Current Control function | no |
| Temperature range (ambient temp.) | -25 °C to 60 °C, derating > 40 °C -13 °F to 140 °F |
| Protection degree | IP23 |
| Cooling | vario fan |
| MasterBus compatible | Yes |
| Dimensions | 9.2 x 5.2 x 2.4 inch |
What's in the Box:
- ChargeMaster 12/25-3
- DC-wiring: 2 pcs. positive (red) and 1 pc. negative (black
- MasterBus terminating device
- Documentation
