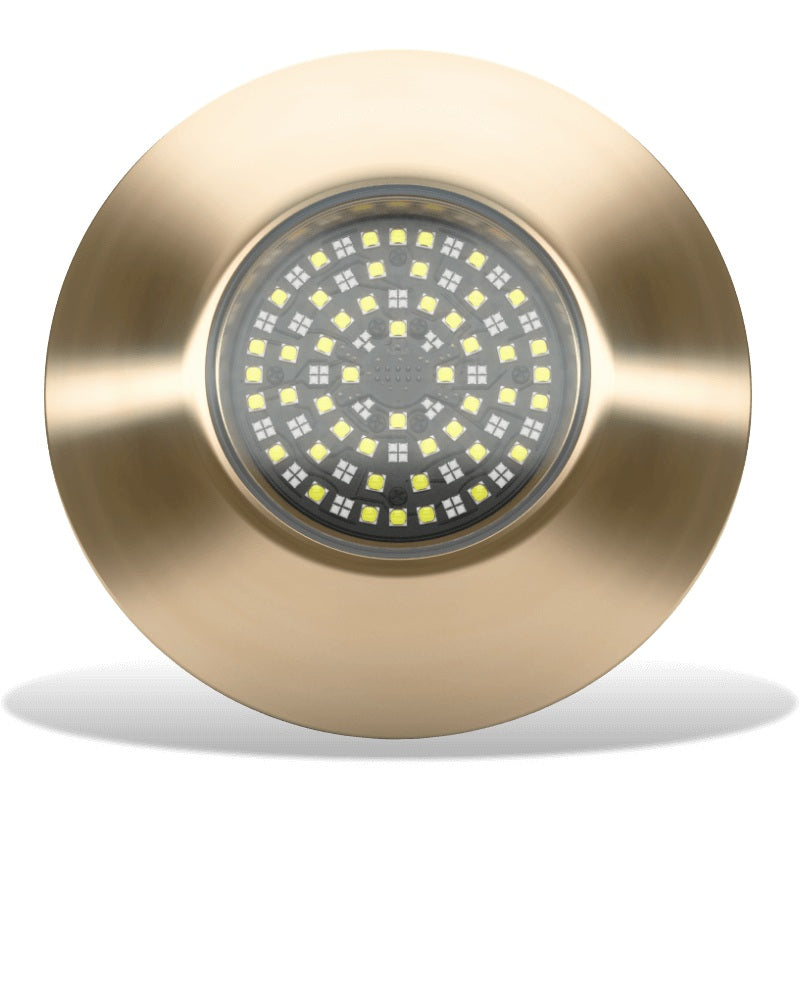

Lumishore SUPRA THX804 Thru-Hull Mount and Driver Blue/White LED

Lumishore SUPRA THX804 Thru-Hull Mount and Driver Blue/White LED

The THX804 is a dual-color (blue and white), full power underwater LED light that produces 13,500 fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.

Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.

Control with the SUPRA i-Connect Hub & Switch. For direct control of your lights from your compatible MFD and/or optional Lumishore Display, add the SUPRA Bridge.

THX models feature a standard 1" fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side and bottom mounting.

AVAILABLE LED COLORS
DUAL COLOR (BLUE & WHITE)

LUMENS
30,375

VERIFIED FIXTURE LUMENS (WHITE)
13,500

NUMBER AND TYPE OF LED
White - 36 x 10W, Blue - 48 x 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
110°

DRIVER
MULTI-CHANNEL EXTERNAL DRIVER

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW
8.8A/4.4A

HOUSING TYPE
MARINE GRADE ALUMINUM BRONZE

USER CONTROL OPTIONS
i-CONNECT HUB & SWITCH OR MFD WITH THE SUPRA BRIDGE

LIGHTS SYNCHRONIZED
YES

BRIGHTNESS ADJUST
YES

STROBE
YES

SYNCHRONIZED STROBE
YES

FADE MODE
YES

SYNCHRONIZED FADE MODE
YES

What's in the Box:

• One (1) SUPRA THX804 Light


• One (1) Driver
