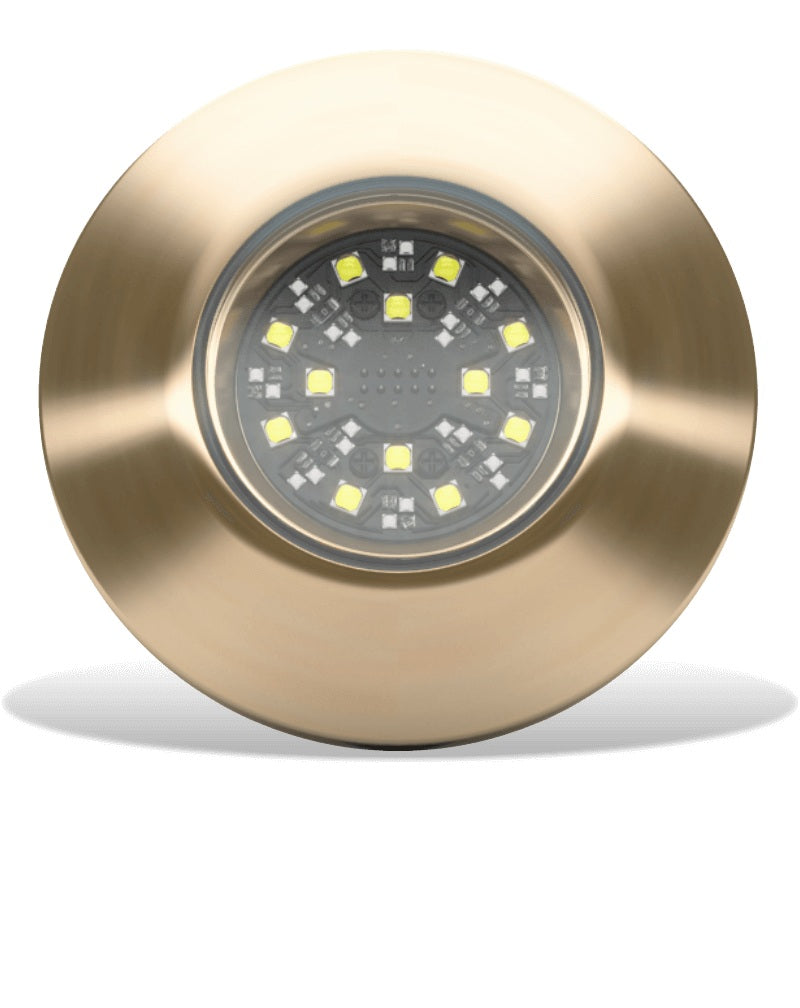

Lumishore SUPRA THX404 Thru-Hull Mount and Driver Blue/White LED

Lumishore SUPRA THX404 Thru-Hull Mount and Driver Blue/White LED

Lumishore's THX404 delivers a powerful 8,150 fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.

The dual color THX404 underwater LED light gives you independent control over two colors (blue and white). Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.

Controlled by the SUPRA I-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge.

THX models feature a standard 1" fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side and bottom mounting.

AVAILABLE LED COLORS
DUAL COLOR (BLUE & WHITE)

LUMENS
18,340

VERIFIED FIXTURE LUMENS (WHITE)
8,150

NUMBER AND TYPE OF LED
White - 12 x 10W, Blue - 24 x 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
110°

DRIVER
MULTI-CHANNEL EXTERNAL DRIVER

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW (12/24)
6.4/3.2A

HOUSING TYPE
MARINE GRADE ALUMINUM BRONZE

USER CONTROL OPTIONS
I-CONNECT HUB & SWITCH OR MFD WITH SUPRA BRIDGE

LIGHTS SYNCHRONIZED
YES

BRIGHTNESS ADJUST
YES

STROBE
YES

SYNCHRONIZED STROBE
YES

FADE MODE
YES

SYNCHRONIZED FADE MODE
YES

Warranty
3 YEARS

What's in the Box:

• One (1) SUPRA THX404 Light


• One (1) Driver
