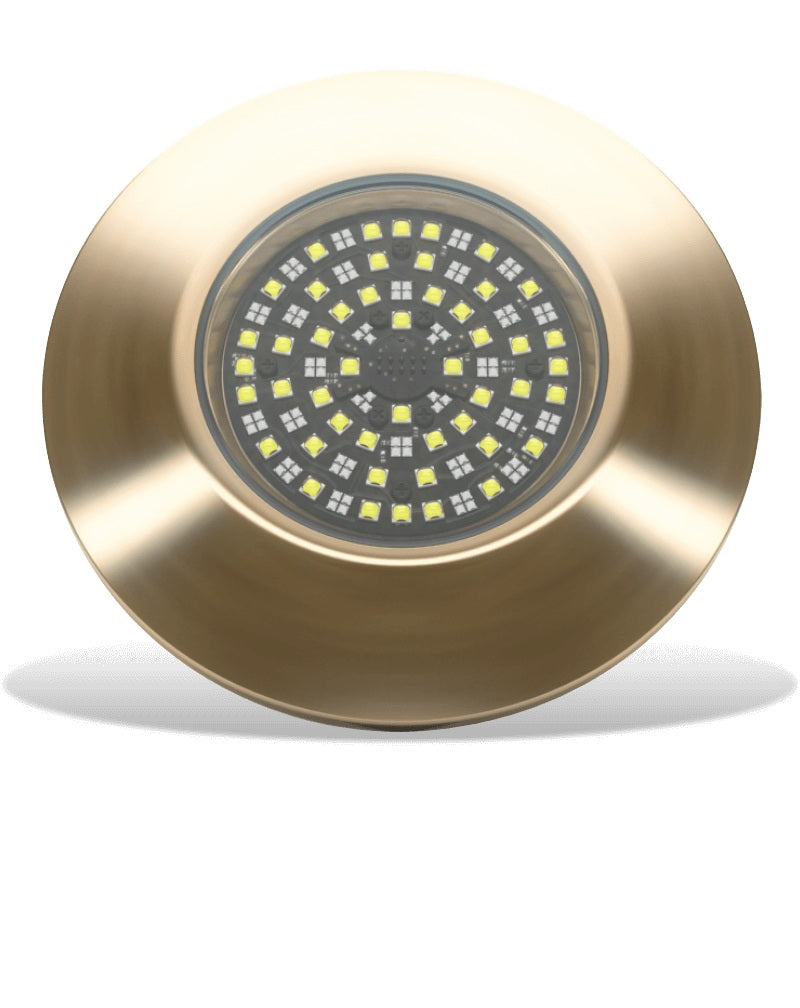

Lumishore SUPRA THX1604 Thru-Hull Mount and Driver Blue/White LED

Lumishore SUPRA THX1604 Thru-Hull Mount and Driver Blue/White LED

Lumishore's THX1604 offers 20,000 fixture lumens and an ultra-wide 110° beam angle for the ultimate swimming pool effect. ‘2-lights-in-1’ (blue and white) in a single full powered thru-hull fixture!

Switch between colors, fade colors, adjust brightness, and strobe in two speeds.

Controlled by the SUPRA I-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge.

THX models feature a standard 1" fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side and bottom mounting.

AVAILABLE LED COLORS
DUAL COLOR (BLUE & WHITE)

LUMENS
45,000

VERIFIED FIXTURE LUMENS (WHITE)
20,000

NUMBER AND TYPE OF LED
White - 48 x 10W, Blue - 108 x 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
110°

DRIVER
Multi-Channel External Driver

SUPPLY VOLTAGE
24 V DC

MAX CURRENT DRAW
6.5A

HOUSING TYPE
MARINE GRADE ALUMINUM BRONZE

USER CONTROL OPTIONS
i-CONNECT HUB & SWITCH OR YOUR MFD WITH THE SUPRA BRIDGE

LIGHTS SYNCHRONIZED
YES

BRIGHTNESS ADJUST
YES

STROBE
YES

SYNCHRONIZED STROBE
YES

FADE MODE
YES

SYNCHRONIZED FADE MODE
YES

What's in the Box:

• One (1) SUPRA THX1604 Light


• One (1) Driver
