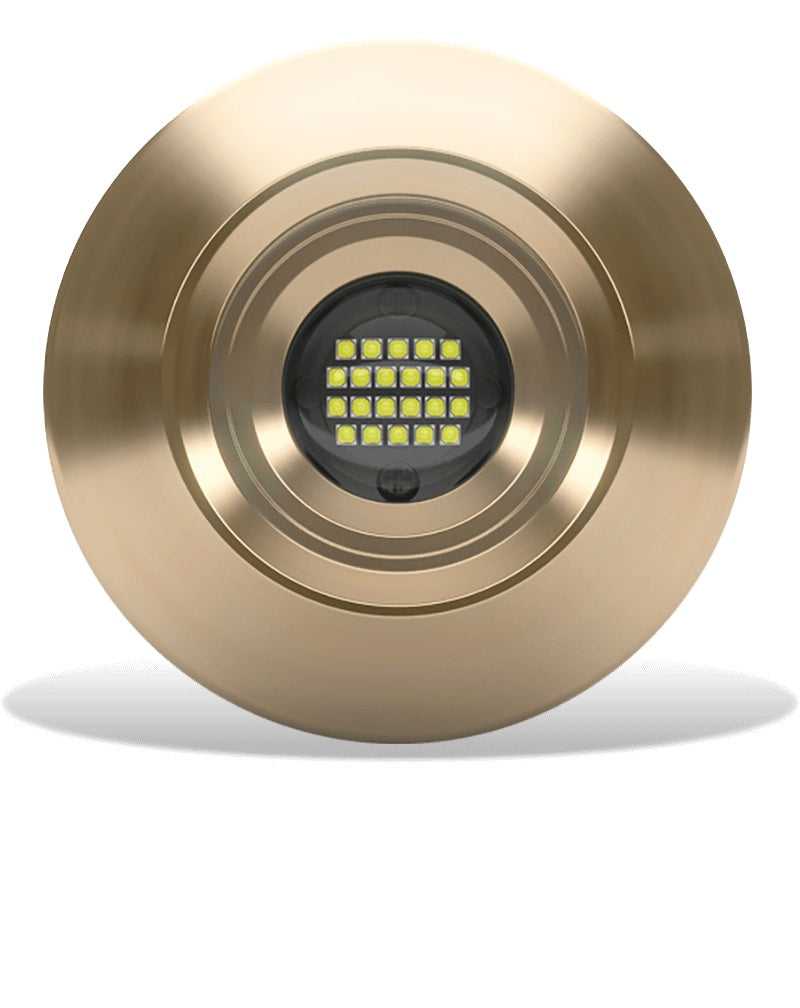

Lumishore ORA TIX204 Interchangeable Flush Fit Mount Blue LED

Lumishore ORA TIX204 Interchangeable Flush Fit Mount Blue LED

The TIX204 packs a powerful 5,300 fixture lumens into a compact, low profile interchangeable thru-hull.

Available in single color Blue, White or Green with a focused 60° beam angle.

TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.

Easily controlled by a standard on/off switch.

Suitable for transom, side and bottom mounting.

LED COLOR
BLUE

LUMENS
11,925

VERIFIED FIXTURE LUMENS (WHITE)
5,300

NUMBER AND TYPE OF LED
White - 11 x 10W High Power LEDs, Blue & Green — 22 x 3W High Power LED

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
60°

DRIVER
MULTI-CHANNEL INTERNAL DRIVER

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW
4.0A/1.9A

HOUSING TYPE
MARINE GRADE ALUMINUM BRONZE

USER CONTROL OPTIONS
ON/OFF SWITCH

What's in the Box:

• One (1) ORA TIX204 Light with Built-in Driver
