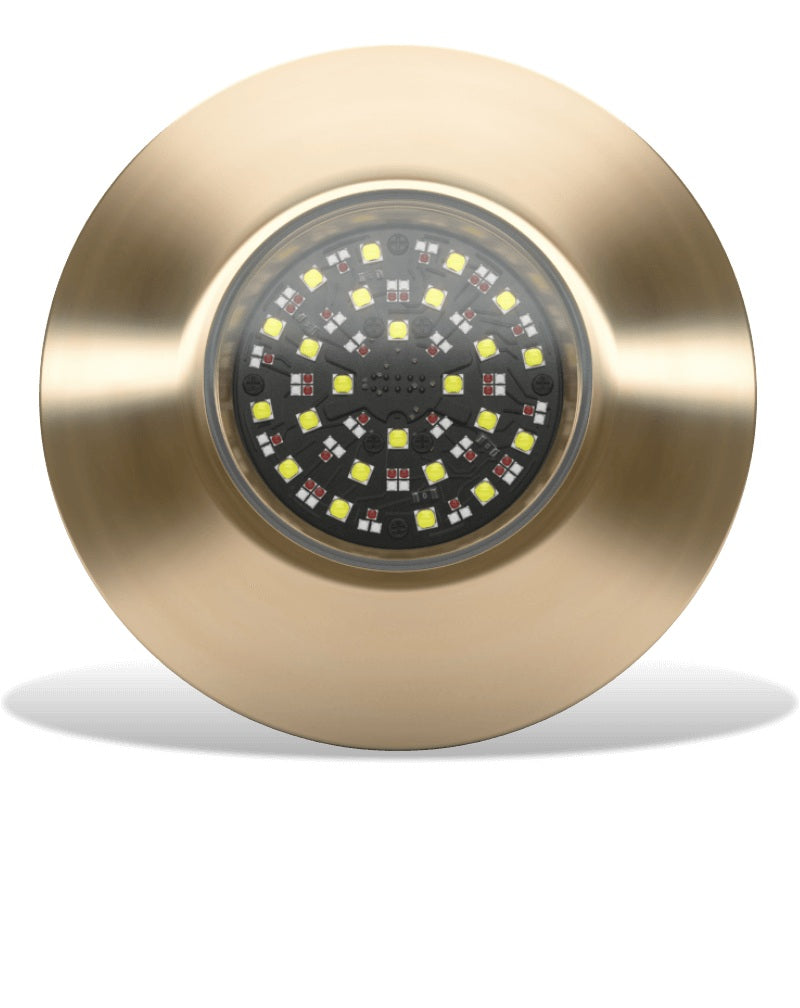

Lumishore EOS TIX804 Interchangeable Thru-Hull Mount RGBW LED

Lumishore EOS TIX804 Interchangeable Thru-Hull Mount RGBW LED

The TIX804 delivers a powerful 12,000 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.

Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.

TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.

Suitable for transom, side and bottom mounting.

AVAILABLE LED COLORS
EOS FULL COLOR CHANGE (RGBW)

LUMENS
27,000

VERIFIED FIXTURE LUMENS (WHITE)
12,000

NUMBER AND TYPE OF LED
White - 36 x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
110°

DRIVER
Multi-Channel Internal Driver

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW
8.8A/4.4A

HOUSING TYPE
MARINE GRADE ALUMINUM BRONZE

USER CONTROL OPTIONS
From your MFD and/or optional Lumishore Display

LIGHTS SYNCHRONIZED
YES

COLOR CYCLE w/SPEED ADJUST
YES

COLOR SWEEP w/SPEED ADJUST
YES

CUSTOMIZABLE FAVORITES
YES

FIXED & RANDOM STROBES
YES

PROGRAMMABLE SCENES
YES

WI-FI CONTROL (APP)
YES

SOUND-TO-LIGHT
YES

BRIGHTNESS ADJUST
YES

AUTO LIGHT DISCOVERY & SETUP
YES

WARRANTY
3 YEARS

What's in the Box:

• One (1) EOS TIX804 Light with Built-in Driver


• Two (2) x 1M DMX cables (60-0403)
