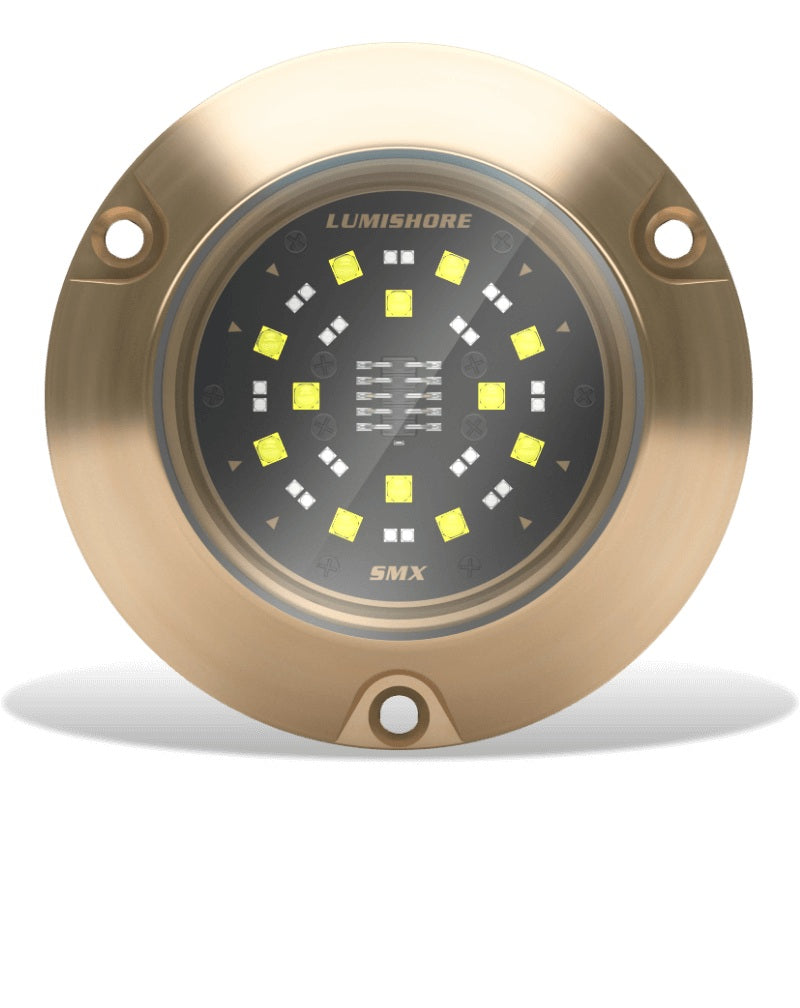

Lumishore ECLIPSE SMX54 Surface Mount Blue/White LED

Lumishore ECLIPSE SMX54 Surface Mount Blue/White LED

2-lights-in-1 (blue and white) in a single high-powered bronze surface mount fixture without sacrificing brightness; both colors run at full power!

Lumishore's SMX54 delivers 7,500 fixture lumens in a wide 90° beam of light.

Control the SMX54 with a standard on/off switch, SUPRA i-Connect Hub & Switch or ECLIPSE Command Center.

Suitable for stepped hulls, transoms, and hull sides of nearly any type of boat.

AVAILABLE LED COLORS
DUAL COLOR (BLUE & WHITE)

LUMENS
16,875

VERIFIED FIXTURE LUMENS (WHITE)
7,500

NUMBER AND TYPE OF LED
White — 12 5W / Blue —24 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
90°

DRIVER
MULTI-CHANNEL INTERNAL DRIVER

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW
5.9A / 2.8A

HOUSING TYPE
MARINE GRADE BRONZE / GLASS LENS

USER CONTROL OPTIONS
ON/OFF SWITCH, I-CONNECT HUB & SWITCH OR ECLIPSE COMMAND CENTER

LIGHTS SYNCHRONIZED
YES

COLOR FADE CYCLE
YES

FADE w/BRIGHTNESS ADJUST
YES (NOT WITH ON/OFF SWITCH)

FIXED STROBES
YES

STROBE w/SPEED ADJUST
YES (NOT WITH ON/OFF SWITCH)

SYSTEM MEMORY
YES (NOT WITH ON/OFF SWITCH)

Warranty
3 YEARS
