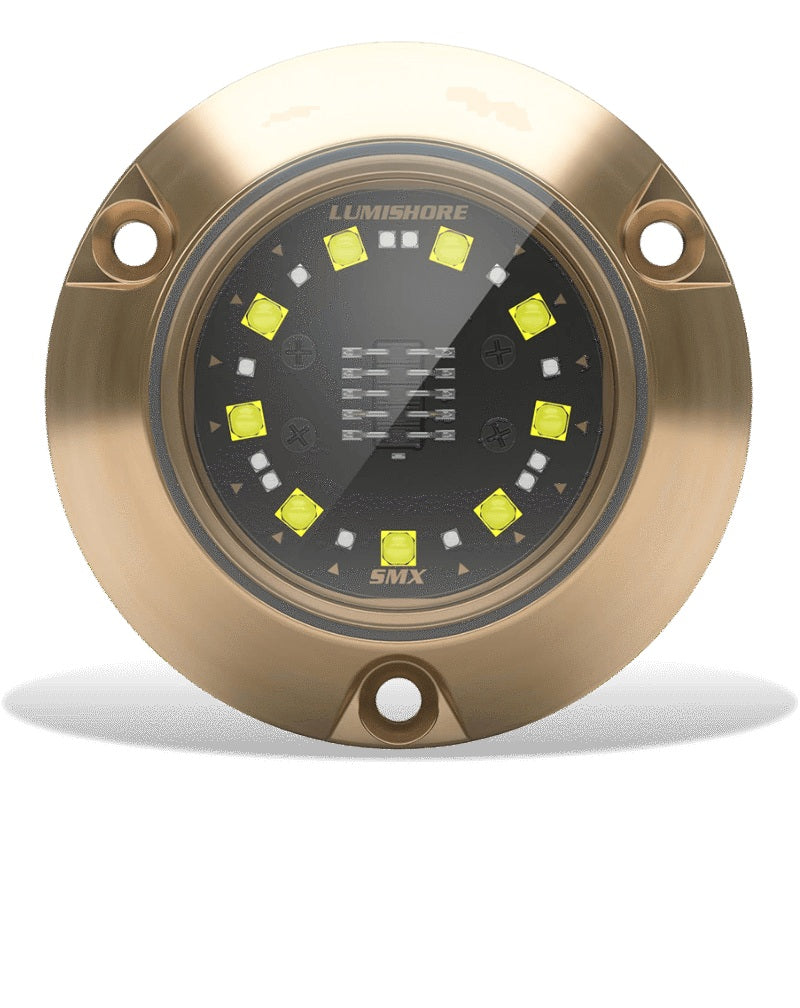

Lumishore ECLIPSE SMX24 Surface Mount White LED

Lumishore ECLIPSE SMX24 Surface Mount White LED

Specifically designed for smaller boats, the SMX24 - White offers unmatched light output and optics for a light of its compact size. Flooding the water with 3,100 fixture lumens of light in a 90° beam.

It's built-in driver and simple 2-wire connections make the installation of this light easier than ever.

Suitable for stepped hulls, transoms, and hull side installations.

Controlled by an ON/OFF switch or the ECLIPSE Command Center.

COLOR
WHITE

LUMENS
6,975

VERIFIED FIXTURE LUMENS (WHITE)
3,100

NUMBER AND TYPE OF LEDS
White — 9 5W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
90°

DRIVER
MULTI-CHANNEL INTERNAL DRIVER

SUPPLY VOLTAGE
12 V DC ONLY

MAX CURRENT DRAW
2.5A 2.5A 2.5A

HOUSING TYPE
MARINE BRONZE BODY/ GLASS LENS

USER CONTROL OPTIONS
STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER

DIMMING CONTROL
YES

WARRANTY
3 Years
