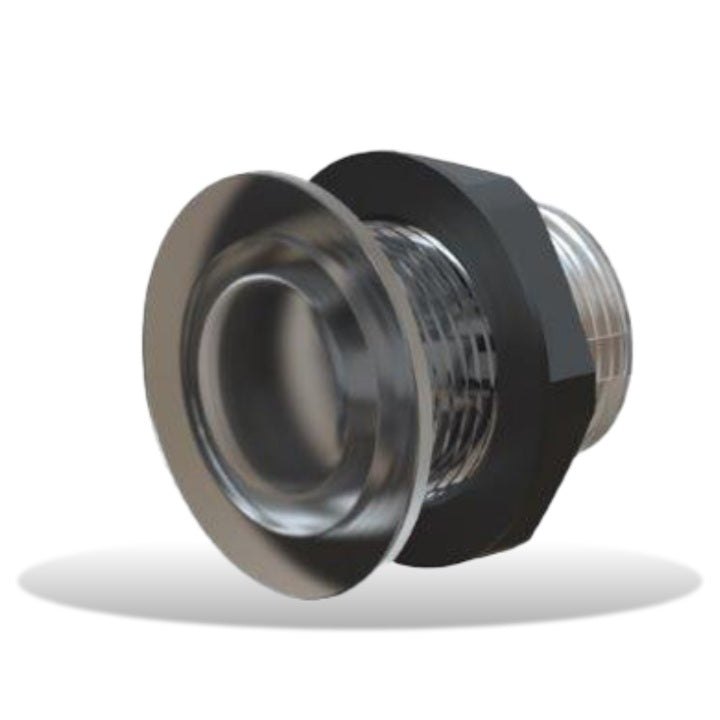

Lumishore Eclipse CL30 Blue Courtesy Light 12/24vDC

Lumishore Eclipse CL30 Blue Courtesy Light 12/24vDC

ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations and other design elements of a boat.

Constructed of a durable clear acrylic body, completely water sealed and IP67 rated.

Available in single color blue and two other color options.

Measuring 33mm (1.3") in diameter, ECLIPSE Courtesy Lights are small, discreet and easy to install with a 2 wire hookup, flush mountable and fit almost anywhere onboard.

Color
Blue

LED Type
3 x 0.5W Blue LEDs

Customer Control Options
On/Off Switch or ECLIPSE Command Center

Electrical Installation
Simple 2 Wire Installation

Supply Voltage Range
12V DC Only (10 - 15V DC)

Max Current Draw (12V DC)
0.1A

Ingress Protection
IP67

Front Diamater (Bezel)
33mm (1.3")

Depth
30.0mm (1.180")

Hole Diameter for fitting
25.4mm (1.0")

Mechanical Installation
Panel Mount
