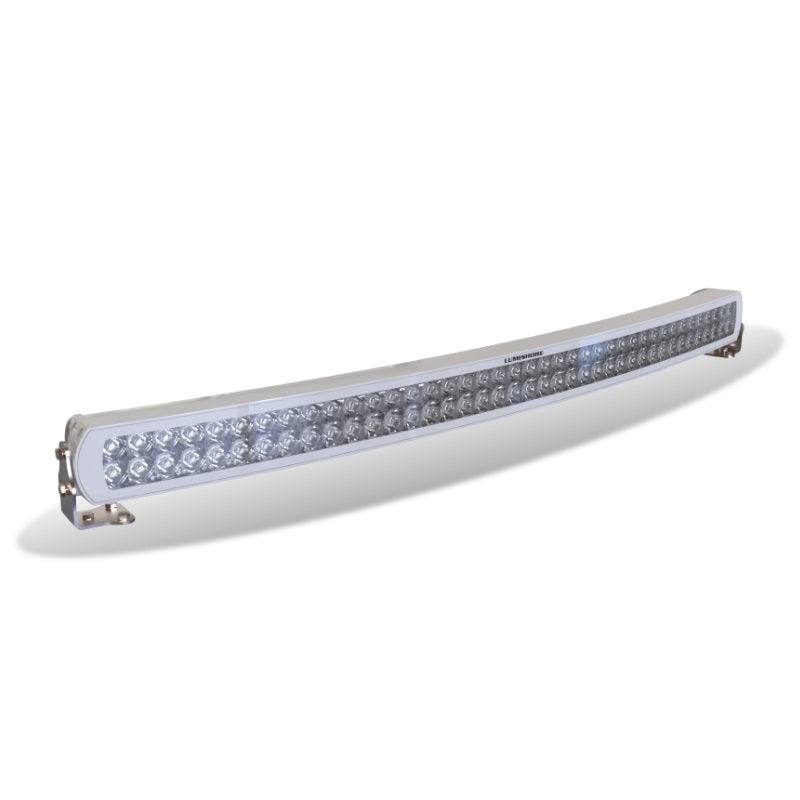

Lumishore 40in Curved Lightbar White LED, White Housing 12/24vDC

Lumishore 40in Curved Lightbar White LED, White Housing 12/24vDC

Lumishore's new collection of Light Bars are designed to offer a high-intensity light source, covering a wide spread area.

The 40'' (100cm) Light Bar delivers class-leading performance, generating a powerful 31,680 fixture lumens of crisp, white light to illuminate your boat deck and beyond.

Designed to withstand the harshest marine environments, completely water tight (IP68 compliant) and housed in marine-grade powder coated aluminium. These sleek, low profile Light Bars enhance your boat's fit-out, even when not in use.

Controllable via an on/off switch, ECLIPSE Command Center or EOS-LUX Command Center.

Available colors
White (5500 K)

Lumens
71,280

Fixture Lumens
31,680

Number & Type Of LED
80 x 10W White LED

LED Power HICOB Array
Yes

Typical LED Life
50,000+ Hours

User Control Options
On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center

Electrical Installation
Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center)

Housing Type
Powder Coated Aluminium Body with Makrolon Lens

Driver
Internal

Supply Voltage Range
10.5—31 V DC

Max Current Draw 12/24V
25.7 A/12.8 A

Beam Angle
9° - 45° Letterbox Beam (Vert - Horiz)

Water Ingress Protection Rating
IP68

Warranty
3 Years

What's in the Box:

• One (1) Light Bar - Curved 40"


• Stainless steel bracket and fasteners
