Lowrance
Lowrance Mb-36 2-1/4"" Ball Mount Bracket With Short Arm For 10"" Units
Lowrance Mb-36 2-1/4"" Ball Mount Bracket With Short Arm For 10"" Units
Order and earn 700 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
Lowrance M-36 RAM-D-111U-C Large Marine Electronics Mount

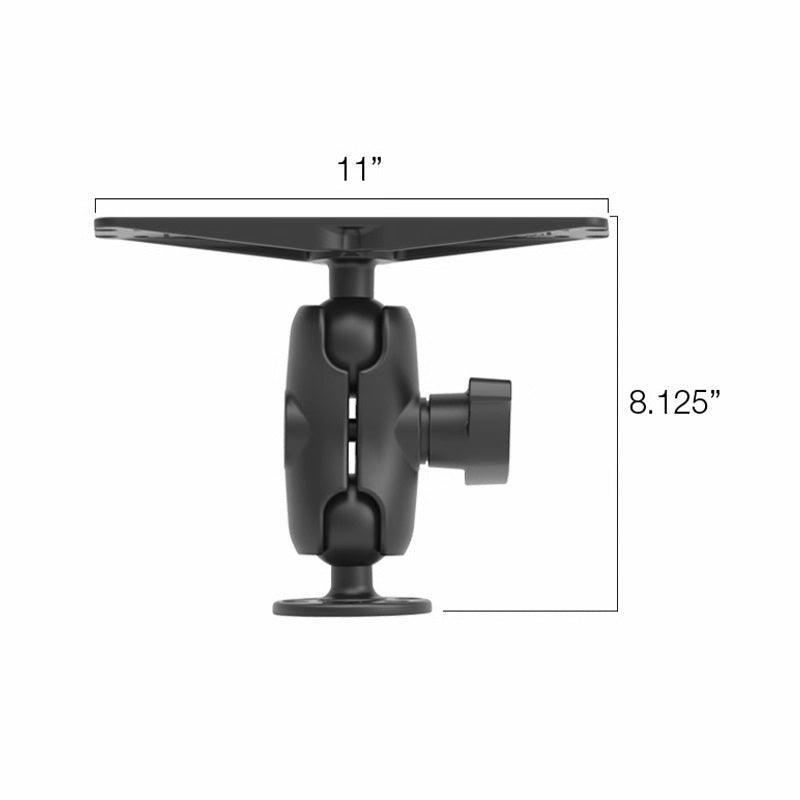

Model: 000-0124-75- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125""
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
The RAM-D-111U-C consists of a short double socket arm, 3.68"" diameter round base, and 11"" x 3"" rectangle base. The round base includes a 2.25"" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25"" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.
The 11"" x 3"" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Specifications| Plate size | Top Plate: 3"" x 11"" Bottom Plate: 3.68"" Diameter |
| Ball/Socket Size | D Size (2.25"") |
| Weight Capacity | Standard Use: 6 lbs Heavy-Duty Use: 5 lbs |
| Materials | Marine-grade aluminum |
What's in the Box:
- Ram-D-202U Large Round Plate with Ball
- RAM-D-201U-C RAM® Double Socket Arm
- RAM-D-111BU RAM® Large Marine Electronics Ball Adapter
