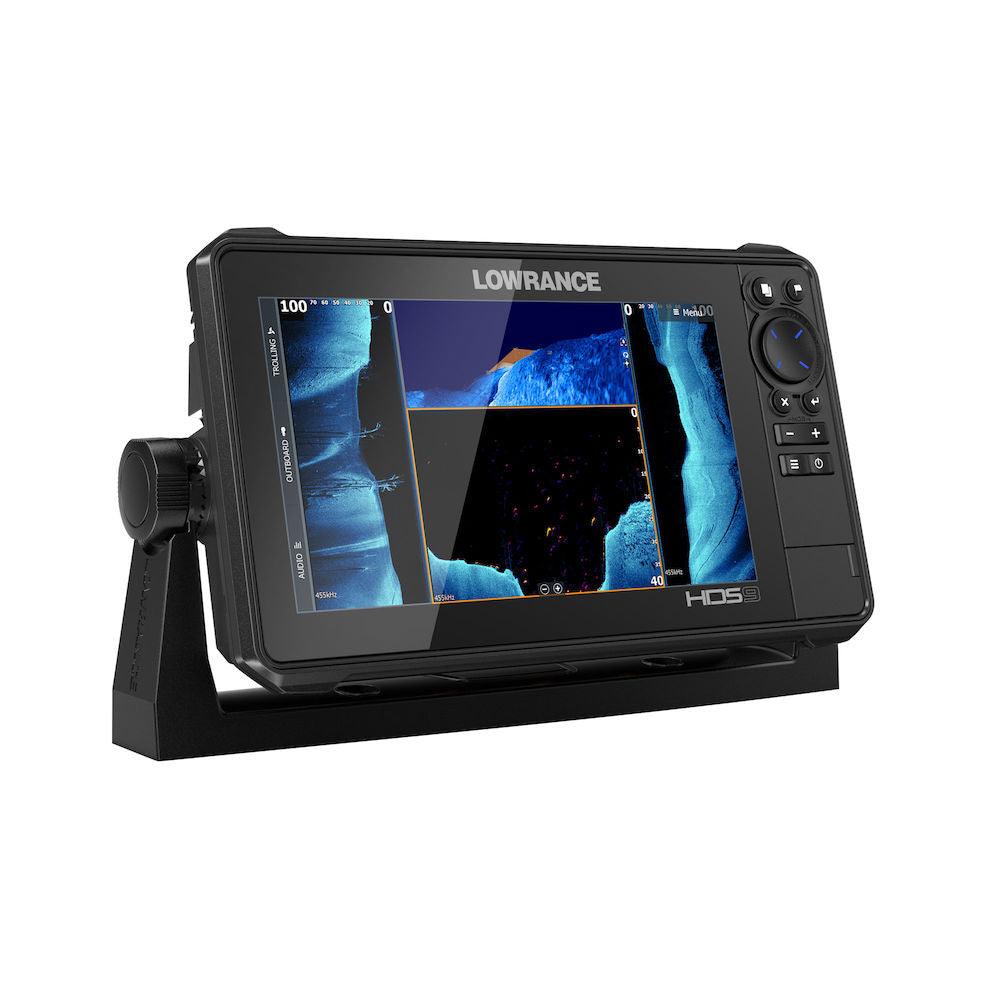

Lowrance HDS-9 Live MFD
Model: 00014422001- NEW! Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan)
- Active Imaging 2-in-1 ready
- LiveSight™ real-time sonar compatible
- Smartphone notifications
- C-MAP Genesis Live onscreen mapping
- StructureScan® 3D with Active Imaging enhancements - Coming Fall 2018
- High-performance dual-core processor
- FishReveal Smart Target View
- Full high-definition HDS SolarMAX™ HD multi-touch screen with the widest range of viewing angles — viewable even through polarized sunglasses
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000-plus lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP — dual sonar-range coverage from the same transducer
- Live Network Sonar — cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
- Wireless and Bluetooth® connectivity
- Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas
- Enhanced Surface Clarity lets you see more fish targets near the surface
- Quick Access Control Bar provides one—touch access to system controls
- Built-in CHIRP and Broadband Sounder
- SmartSteer™ control for Xi5 Trolling Motor and Outboard Pilot
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
The Lowrance HDS-9 LIVE with Active Imaging 3-1 Transducer offers the best collection of innovative sonar features available, including Active Imaging™, StructureScan® 3D with Active Imaging, FishReveal™ and LiveSight™ sonar — plus exciting functionality like C-MAP® Genesis Live mapping and LiveCast™ smartphone integration.
Full high-definition SolarMAX™ HD multi-touch screen - Preloaded C-MAP® US Enhanced mapping. Compatible with Active Imaging™, StructureScan® 3D with Active Imaging and LiveSight™ real-time sonar. Includes wireless connectivity, Ethernet, NMEA 2000®, LiveCast™ smartphone Integration + ultimate integration capability. Includes Active Imaging 3-in-1 Transducer. Ultra-clear SolarMAX™ HD multi-touch display - GPS with preloaded C-MAP® US Enhanced mapping. Compatible with Active Imaging™, StructureScan® 3D with Active Imaging and LiveSight™ real-time sonar. Includes wireless connectivity, Ethernet, NMEA 2000® + ultimate integration capability. Includes Active Imaging 3-in-1 Transducer.
Specifications| Resolution | 1280 x 720 |
| Brightness | > 1200 nits |
| Type | 9" IPS |
| Touch Screen | Multi-Touch |
| Viewing Angle | 80° top/bottom, 80° left/right |
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Power Consumption - MAX | 40.02 W (2.9 A at 13.8 V DC) |
| Recommended Fuse | 4A |
| Operating Temp Range | -15°C to +55°C (5°F to 131°F) |
| Storage Temp Range | -20°C to +60°C (4°F to 140°F) |
| Waterproof Rating | IPX6 and IPX7 |
| NMEA 2000 | 1 port (Micro-C) |
| NMEA 0183 | 1 port (In Power Cable) |
| Ethernet | 2 ports |
| HDMI Video In | N/A |
| Analog Video In | 1 port (optional cable) |
| USB | N/A |
| Card Slots | 2 slots microSD |
| Wireless | Built-in 802.11 b/g/n |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
