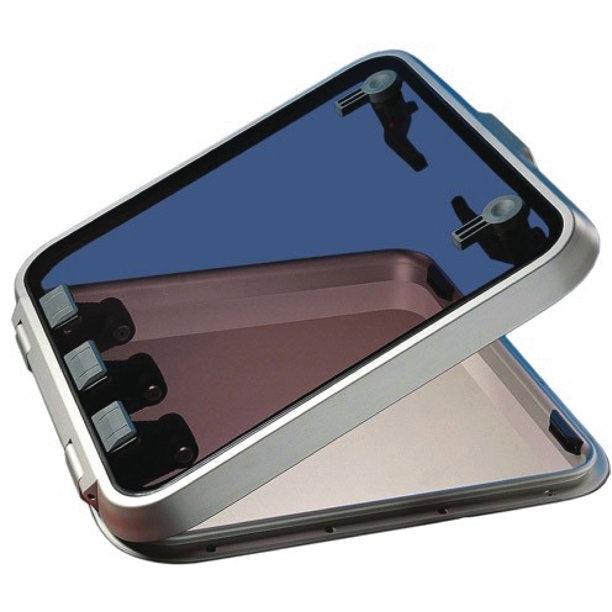

Lewmar Size 70 Ocean Series Hatch Flange Base
Lewmar Size 70 Ocean Series Hatch Flange Base
Regular price
$1,124.99
Regular price
$1,961.95
Sale price
$1,124.99
Unit price
/
per
Order and earn 5625 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
- Fit to a flat surface with a maximum tolerance of +/- 1mm.
- Fastening size at hinge section use (M6 / 1/4").
- Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
| Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| 1" Flange | Smoke Grey | 23.8 | 1/2 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Hinge Length HX (in) | Hinge Width HY (in) | Cut-Out Length Flat X1 (in) | Cut-Out Width Flat Y1 (in) | Cut-Out Radii Flat R1 (in) |
| 27 5/16 | 27 5/16 | 1 11/16 | 3 | 3/16 | 19 3/16 | 24 1/2 | 24 1/2 | 1 11/16 |
