Lewmar

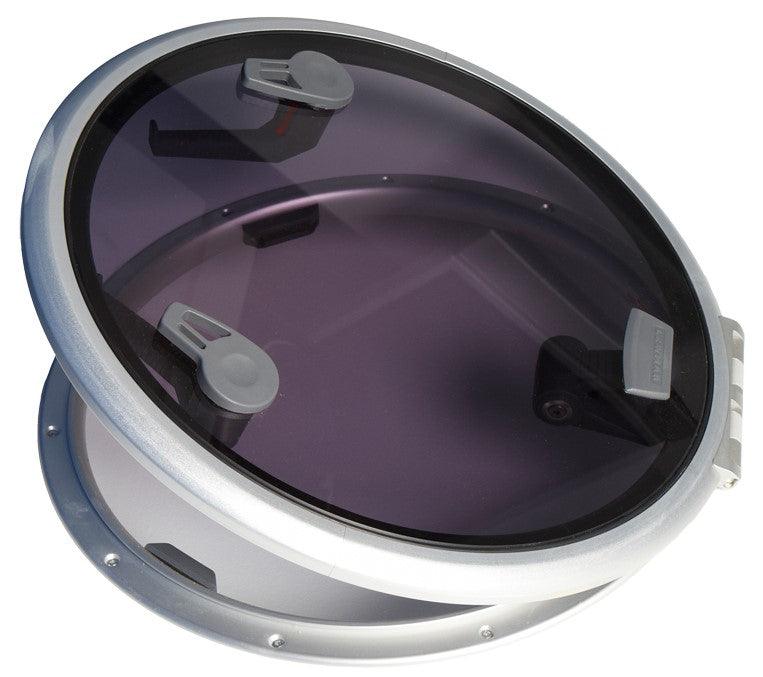

Lewmar Size 18 Low Profile Hatch Flange Base

Lewmar Size 18 Low Profile Hatch Flange Base

$1,019.99
$1,019.99
Sale Sold out
Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Self Supporting 9/16 Smoke Grey 4.9 5/16

Dimensions

Diameter (in) Height Z (in) Hinge Length HX (in) Hinge Width HY (in) Cut-Out Diameter (in)
19 15/16 1 19 7/16 5 9/16 16 9/16

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
