Lewmar

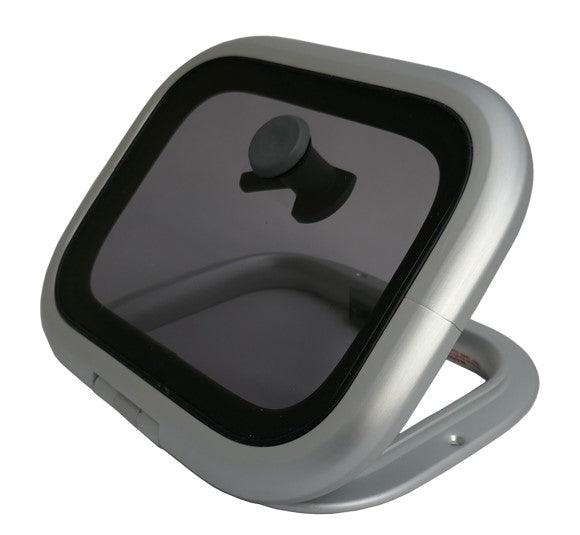

Lewmar Size 03 Low Profile Hatch Flange Base

Lewmar Size 03 Low Profile Hatch Flange Base

$305.99
$514.95 $305.99
Sale Sold out
FREE SHIPPING AVAILABLE WITHIN THE CONTINENTAL U.S. Outside the U.S. and Canada? Contact us to explore shipping options.

Order and earn 1530 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.

The Low Profile hatches have soft styling and sleek looks. They are ideal for use on power craft. Smaller ventilation hatches are suitable for any deck location on sailboats and the larger hatches can even be used as foredeck hatches. The hatch also features Lewmar's unique sealing system allowing easy acrylic replacement

All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

  Specifications
Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Self Supporting 9/16 Smoke Gray 3.5 5/16
  Dimensions
Length X (in) Width Y (in) Height Z (in) Radii R (in) Cut-Out Length X1 (in) Cut-Out Width Y1 (in) Cut-Out Radii R1 (in)
9 11/16 11 7/8 1 2 7/8 6 15/16 9 1/8 1 11/16
