Lewmar

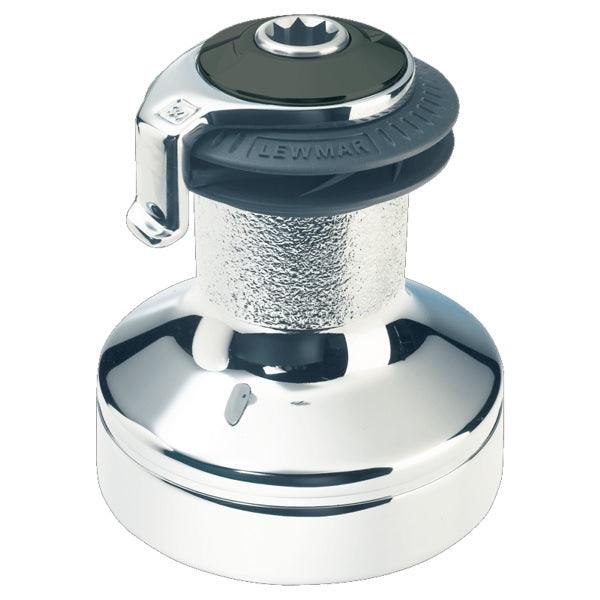

Lewmar 30cst Two Speed Self Tailing Chrome Winch

Lewmar 30cst Two Speed Self Tailing Chrome Winch

$1,313.99
$2,195.95 $1,313.99
Sale Sold out
FREE Shipping Available in the Continental U.S. Outside the Continental U.S. or Canada? Contact us to explore shipping options.

Order and earn 6570 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

The Lewmar 'Wavespring' self-tailer combines their renowned and gentle wave grip feature with self adjusting springs. It handles today's smaller diameters, as well as the traditional larger Dacron composite ropes. A sleek, minimum-friction feeder arm provides absolute snag-free operation.

Mounting Instructions
5 x M6 (1/4 in) c'sk head screws on 113mm (4 7/16in) PCD. Lewmar recommends that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch.

  Specifications
Gear Ratio 1st/2nd Power Ratio 1st/2nd Weight(lb)
2:1/4.2:1 13.8:1/29.2:1 12.3
  Dimensions
Drum Diameter D(in) Base Diameter B(in) Height H(in) Line Entry L(in) Line Size(in)
2 15/16 5 7/16 6 5/16 2 11/16 5/16?1/2
