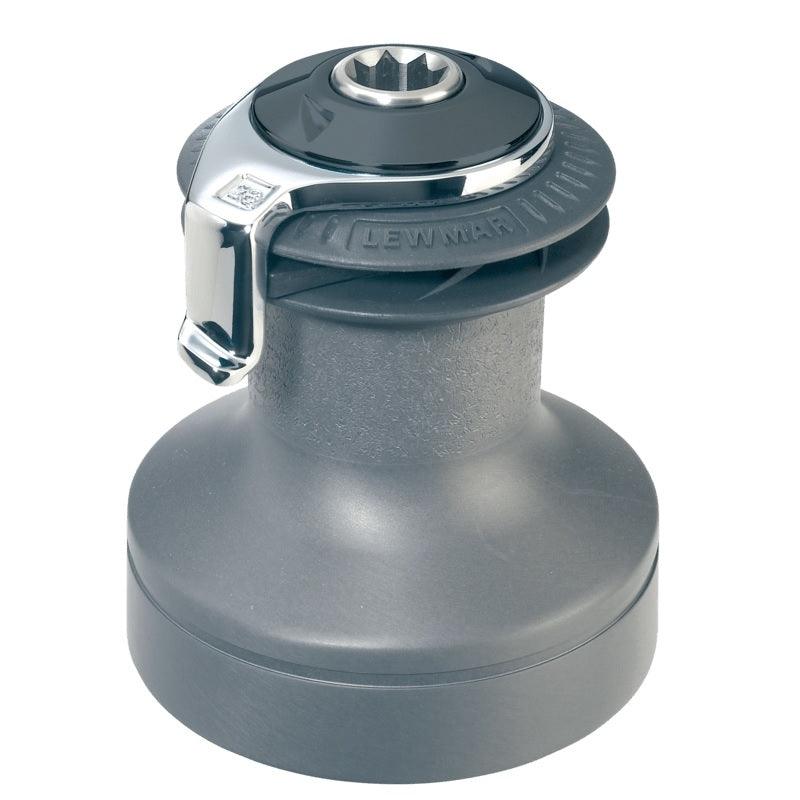

Lewmar 16ast Single Speed Self Tailing Aluminum Winch

Lewmar 16ast Single Speed Self Tailing Aluminum Winch

$792.99
$1,300.95 $792.99
Sale Sold out
FREE SHIPPING AVAILABLE WITHIN THE CONTINENTAL U.S. Outside the U.S. and Canada? Contact us to explore shipping options.

Order and earn 3965 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.

The Lewmar 'Wavespring' self-tailer combines their renowned and gentle wave grip feature with self adjusting springs. It handles today's smaller diameters, as well as the traditional larger Dacron composite ropes. A sleek, minimum-friction feeder arm provides absolute snag-free operation.

Mounting Instructions
5 x M6 (1/4 in) c'sk head screws on 94mm (3 11/16 in) PCD. Lewmar recommends that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch. This product is Made to Order.
Β  Specifications
Gear Ratio Power Ratio Weight(lb)
2:1 15.8:1 6.4
Β  Dimensions
Drum Diameter D(in) Base Diameter B(in) Height H(in) Line Entry L(in) Line Size(in)
2 9/16 4 3/4 5 3/4 2 5/16 5/16-1/2
